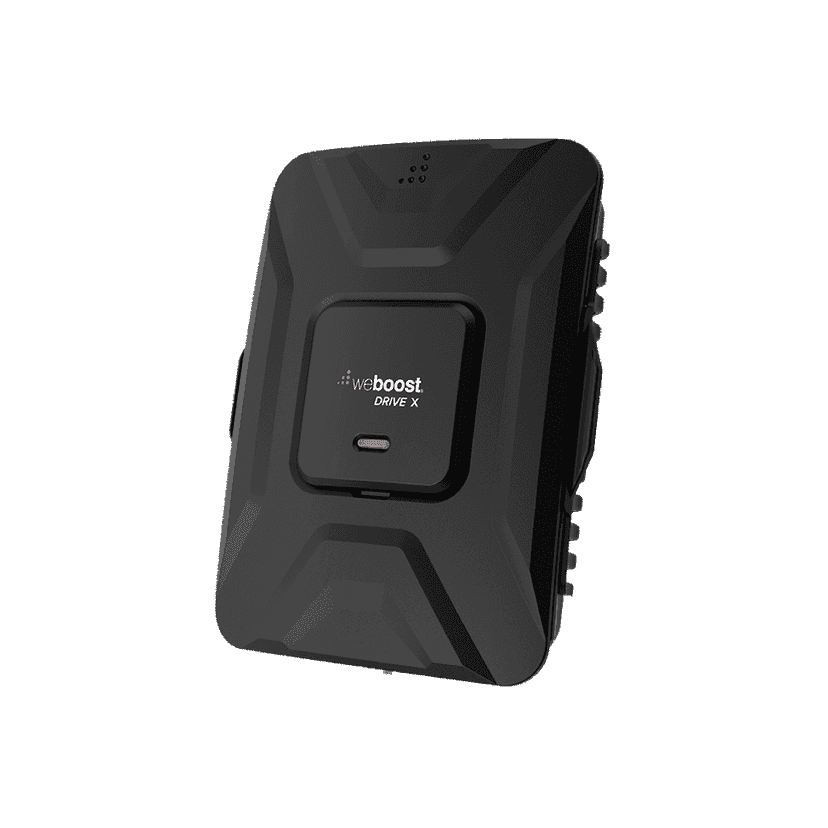

Drive X | 475021
Works on every network, on any carrier.
Product Description

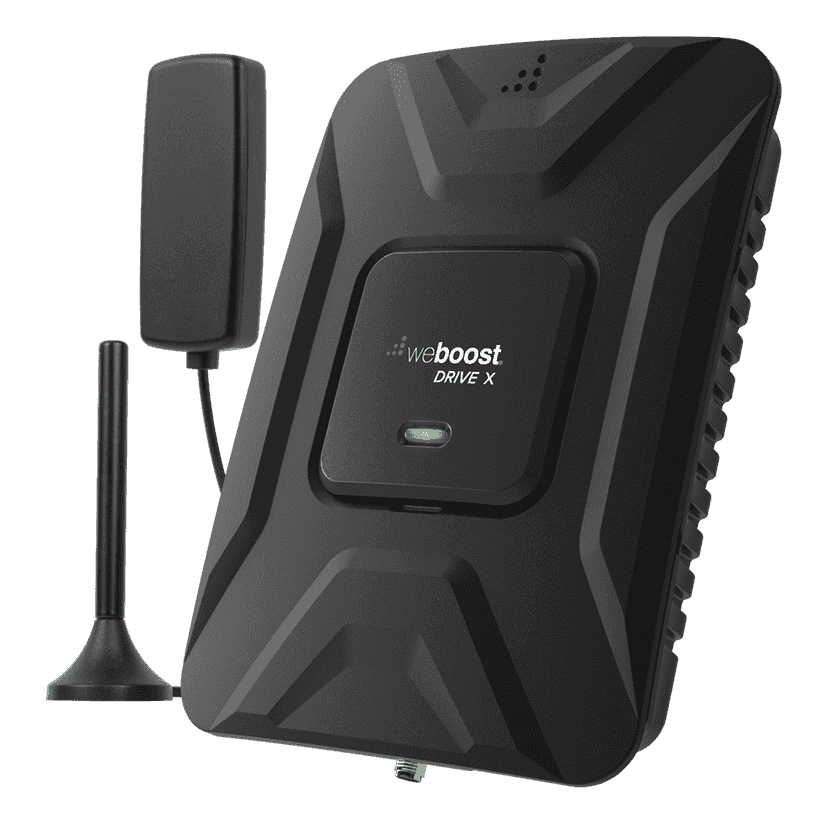

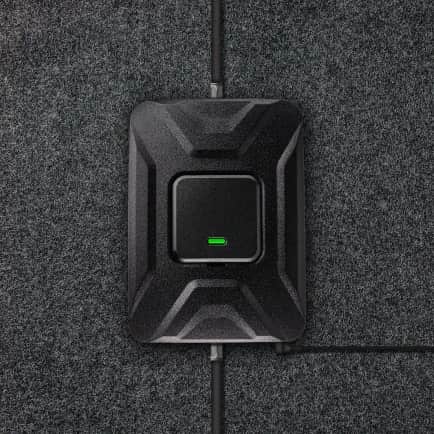

Drive X is weBoost's standard multi-user in-vehicle cell signal booster. It’s designed to reach cell towers farther and provide stronger coverage than the weBoost Drive Sleek.
Installed in minutes without tools, Drive X stops dropped calls while also improving voice quality, data speeds, and streaming capability.
Drive X works on all US carrier networks with all cellular devices as it simultaneously supports multiple users.
5G Ready - weBoost boosters will work for the next decade and beyond.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Best entry-level multi-user booster

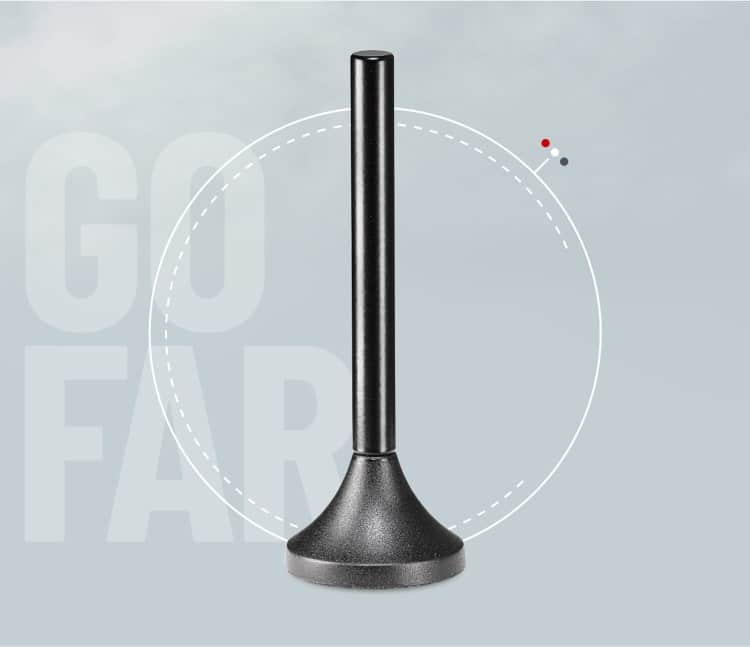

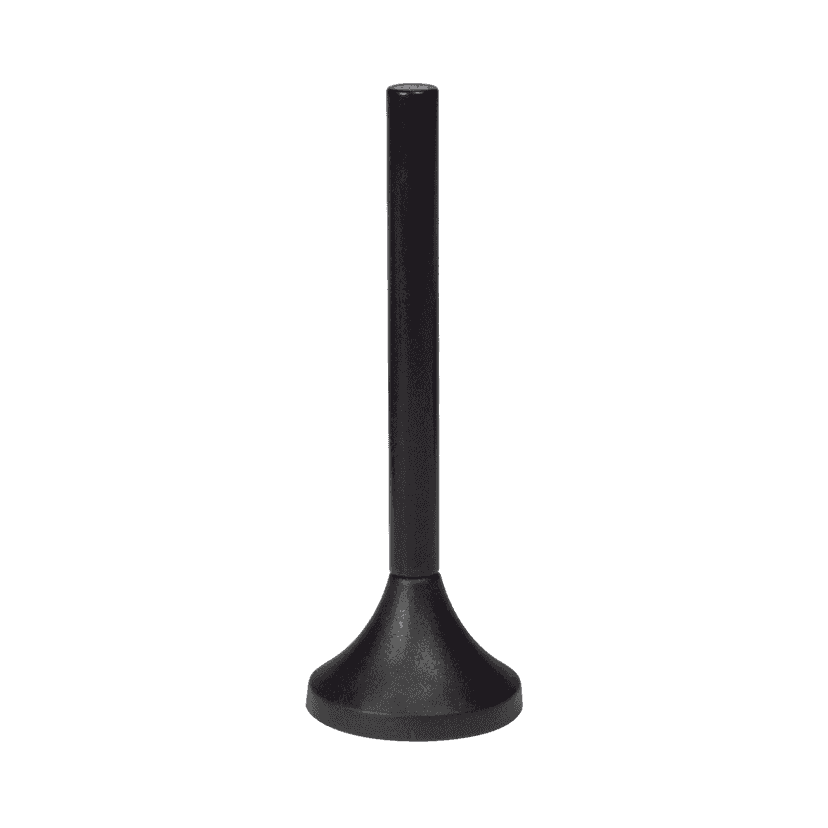

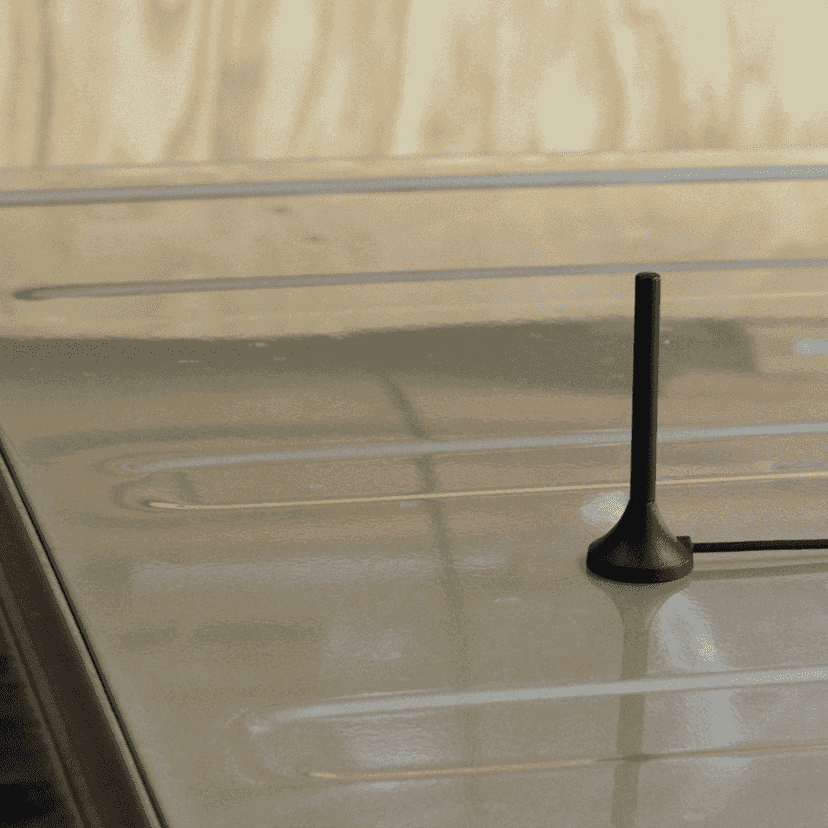

- Magnetic antenna for quick placement
- Tool-free installation, takes just minutes
- Compatible with optional antenna kits

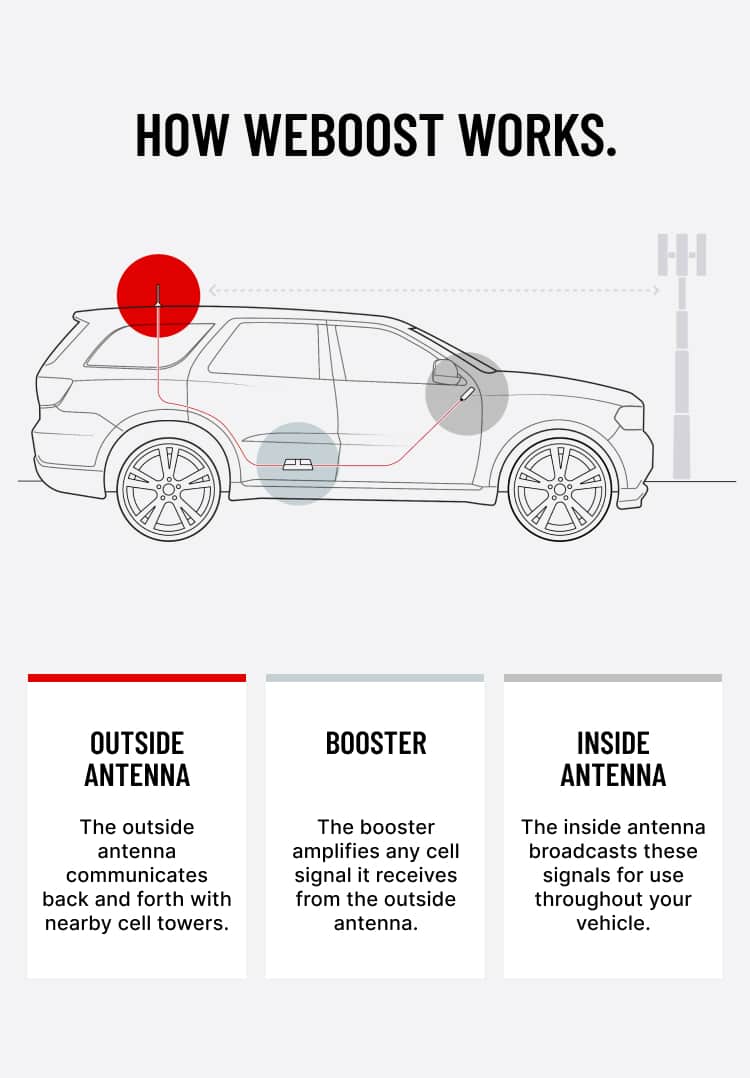

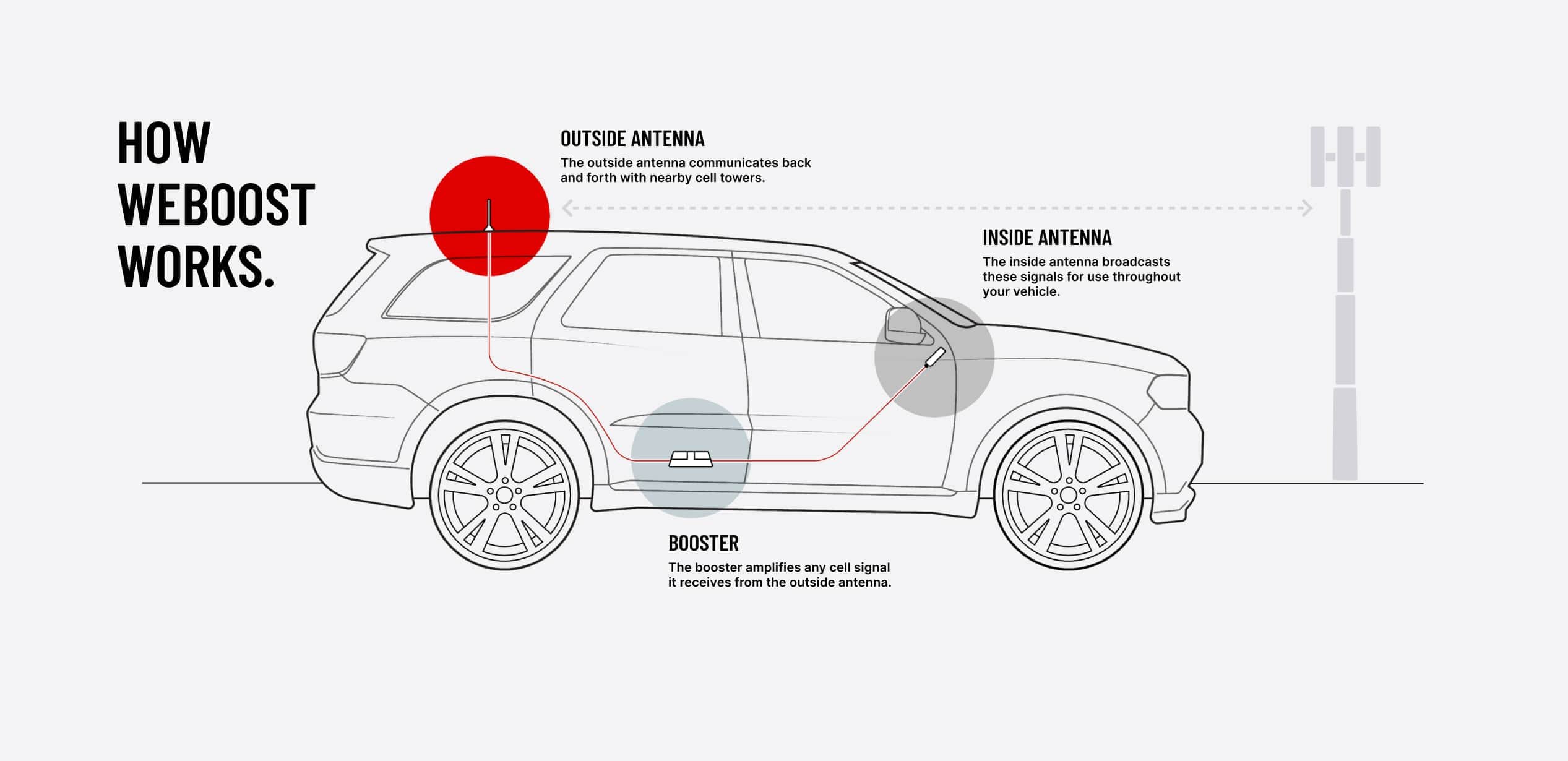

How It Works
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.
Receives
Signal

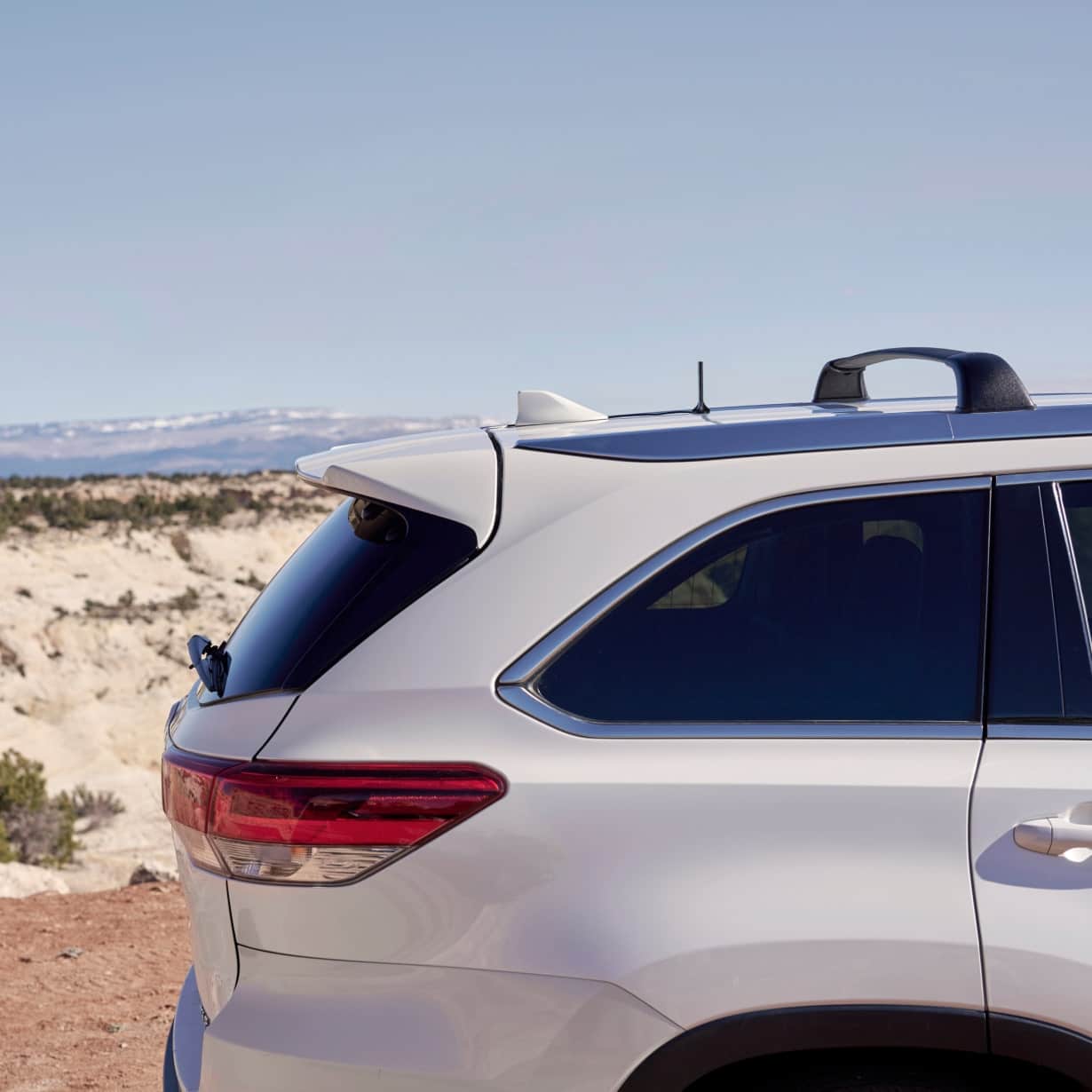

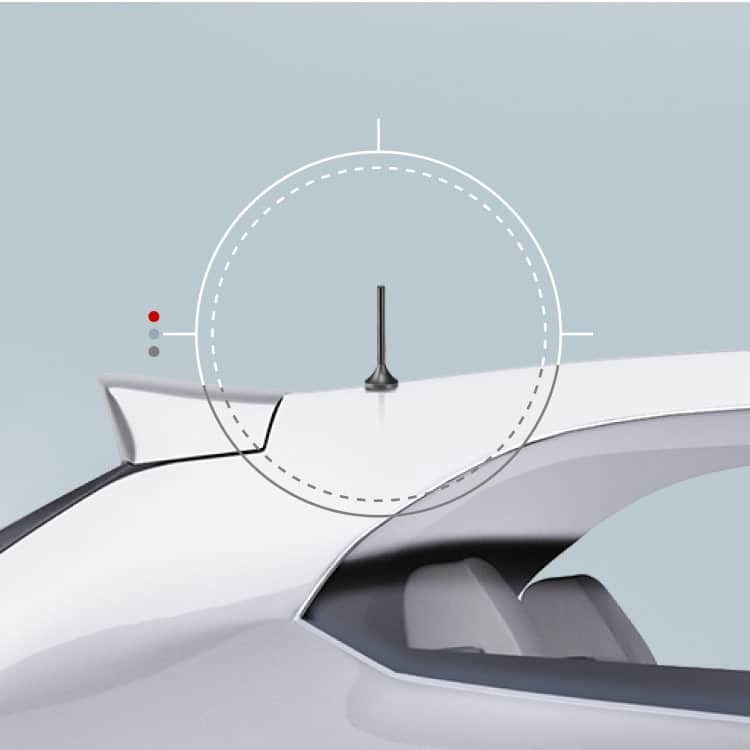

The outside antenna reaches out to the cell tower to access voice and data signals.
Transmits
Signal
The booster receives the outside signal from the outside antenna.
Boosts
Signal
The booster amplifies the outside signal up to and sends it to the inside antenna.
Expands
Signal

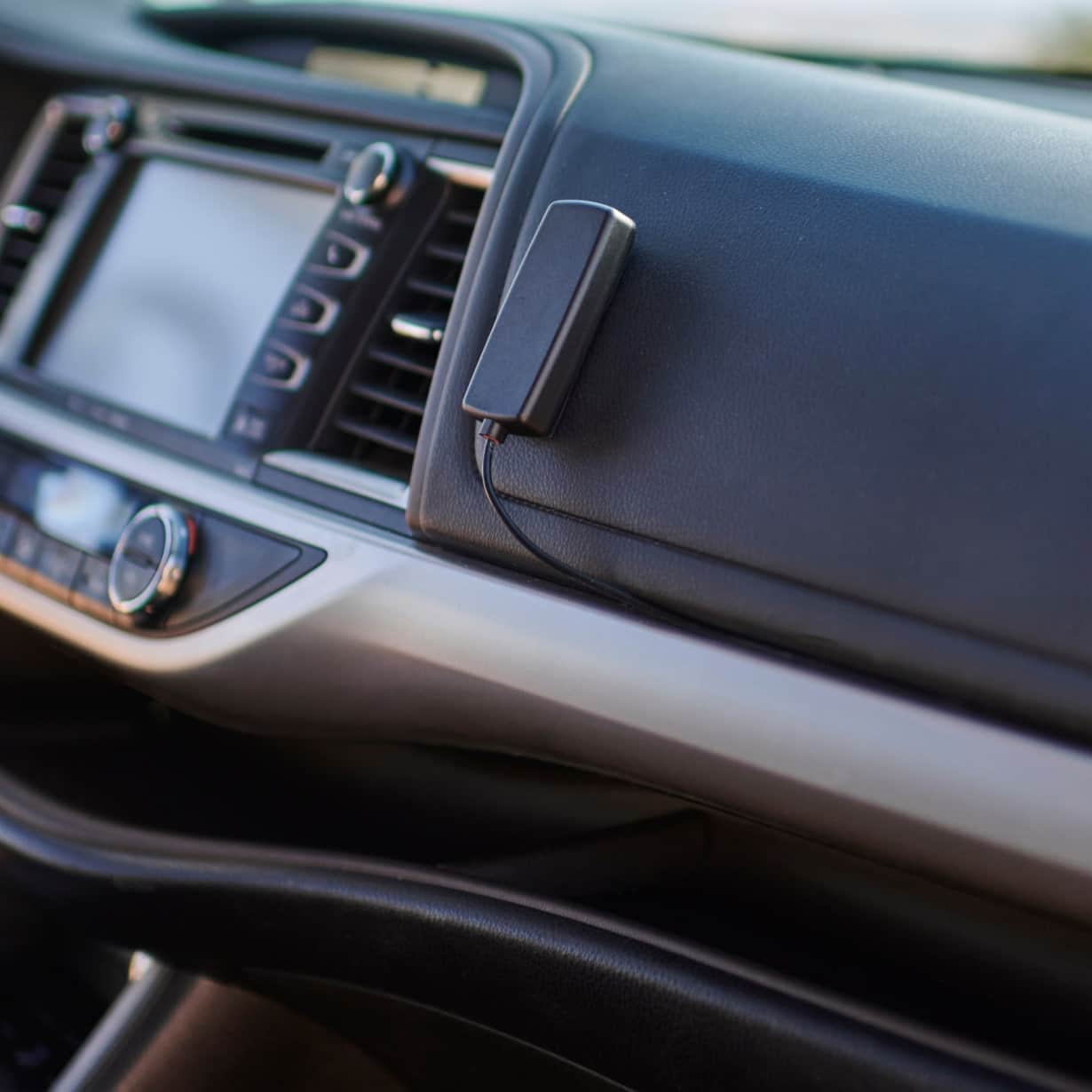

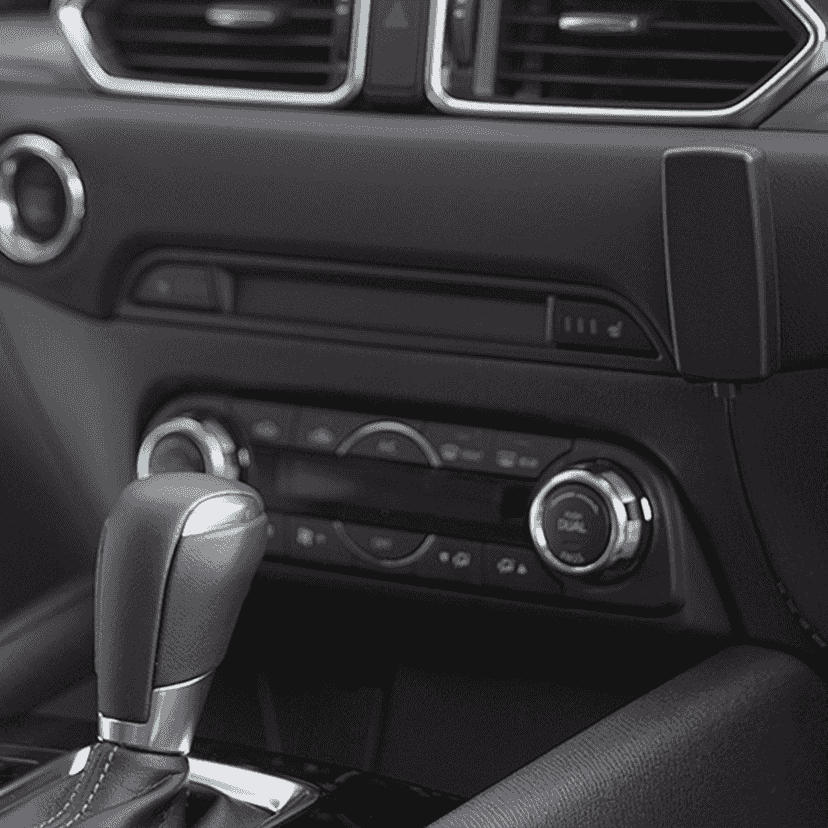

The inside antenna broadcasts the boosted signal inside the vehicle.
Specs
| Model Number: | 475021 | |
| Frequency | Band 12/17 700 MHz | |
| Band 13 700 MHz | ||
| Band 5 850 MHz | ||
| Band 4 1700 / 2100 MHz | ||
| Band 2 1900 MHz | ||
| Impedance | 50 Ohm | |
| Max Gain | 50 dB | |
| Power Req | 6V / 2.5A | |
| Connectors | SMA Female | |
| Dimensions | 6.25 x 4.5 x 1 in. | |
| Weight | .77 lbs. | |
| Price | $ 399.99 | |

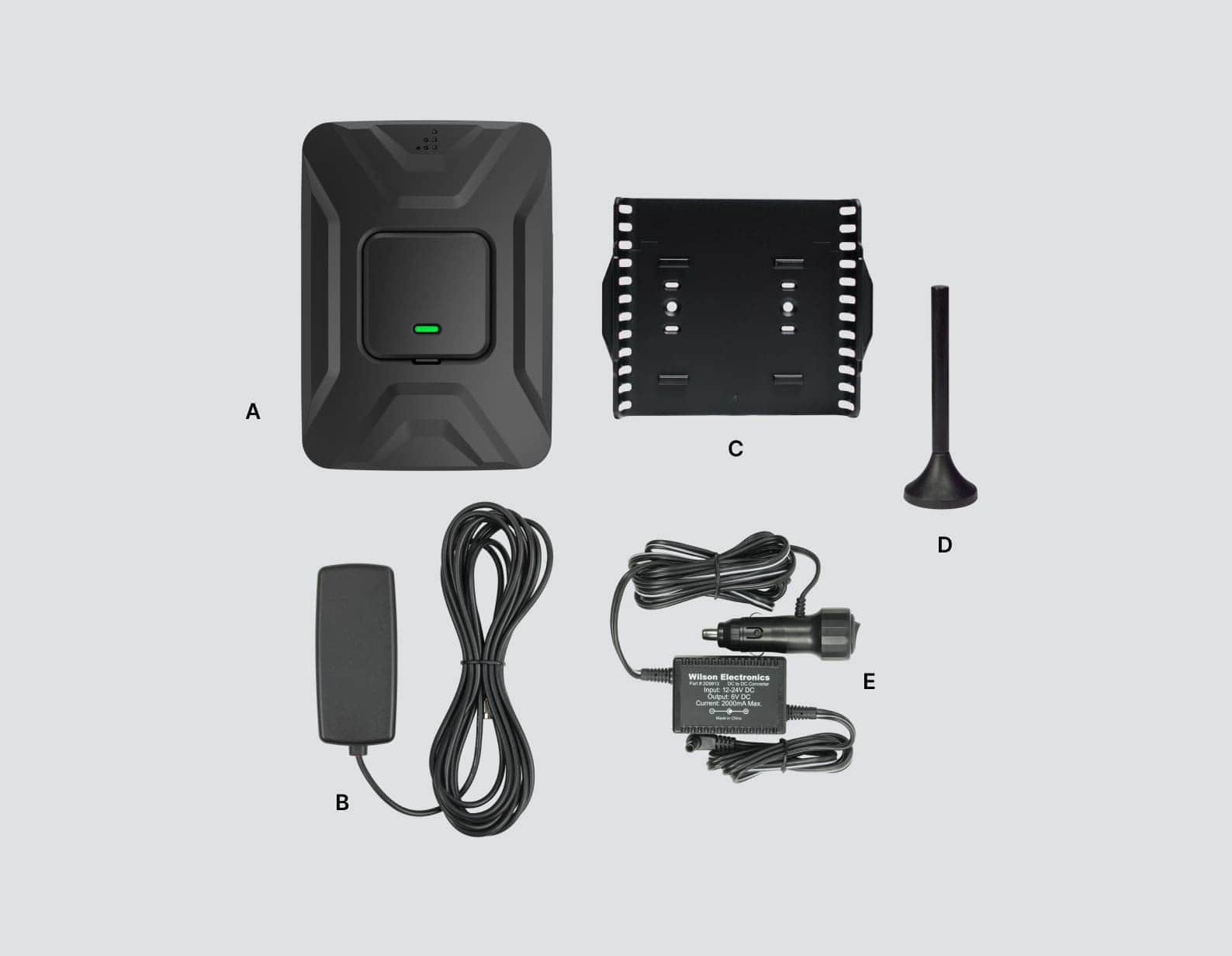

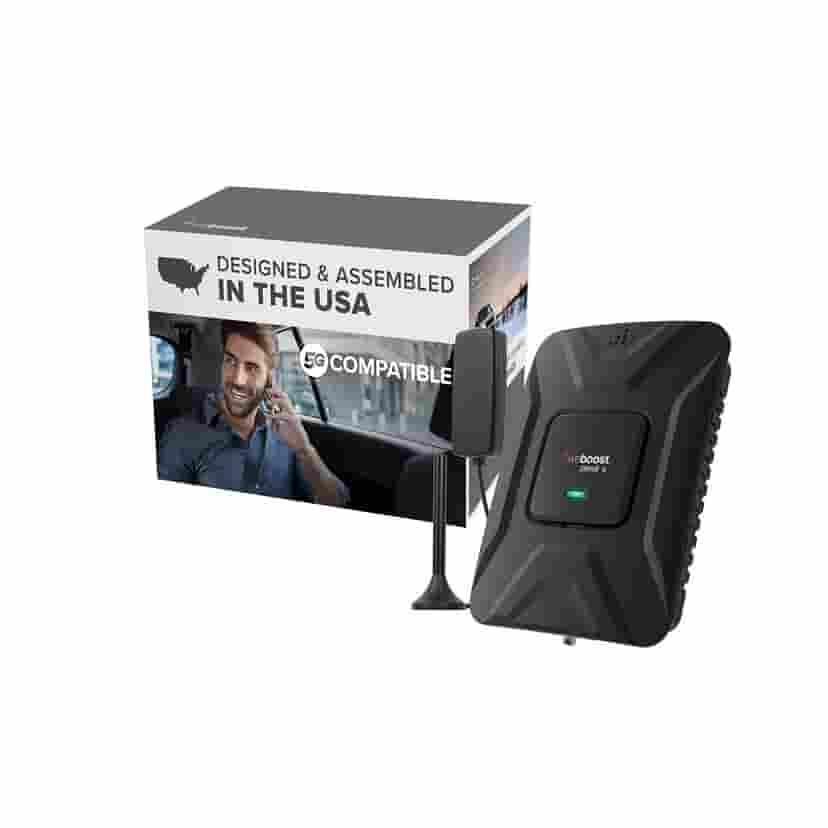

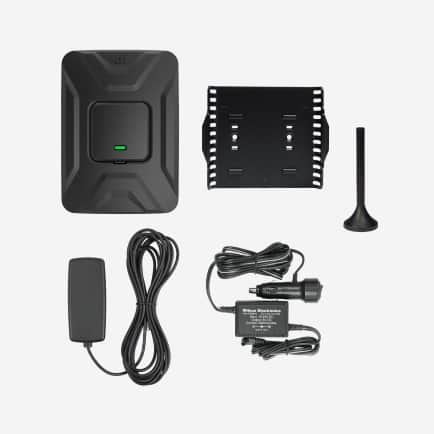

In the box
Each device comes with everything you need for a complete installation. You can also pick up extra parts to extend your installation, if you need help, just give us a call.
Resources
Review Snapshot
Q&A
Showing 10 out of 2 Questions
Asked by Mjstacoma 3 days ago
Question: How many miles away from the nearest signal can it boost or provide signal
Answer: Good question! The distance from towers does not really matter when trying to boost a signal. The antenna will not actually reach out and grab a signal from a tower, but work with what is surrounding it. The distance that a signal travels from a tower depends on the carrier and its surrounding. Buildings and trees act as barriers and affect the way a signal can travel. So as long as there is a signal in the area that the antenna is placed, it will be able to bring it in and amplify it. To get a better idea on how strong the signal at the external antenna is, we recommend taking some dB readings right next to it. If you have any other questions in regards to how the signal is amplified, please feel free to reach out to our customer support team at 866-294-1660 or email our online support at [email protected] Thank you and have a great day!
Was this question helpful to you? Yes: 0 No: 0
Asked by Andy 22 days ago
Question: Can I order a separate wireless antenna like the RV model to use with my Drive 4G-X? The stick on wired antenna installed by Airstream dealer is located in a difficult place to get close enough to.
Answer: Thank you for your question! Unfortunately, we do not have a wireless antenna option for any of our boosters. All of the components need to be connected to the booster via a coax cable in order to properly transmit the signals. I recommend reaching out to our support team at 866-294-1660 or our online team at [email protected] so that they can assist you with a better solution. Depending on what your setup is like, you may be able to just relocate the internal antenna to an area where it is more accessible and more in line of sight to your phone(s). We'll look forward to hearing from you! Thank you!
Was this question helpful to you? Yes: 0 No: 0
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
Warning.E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards
