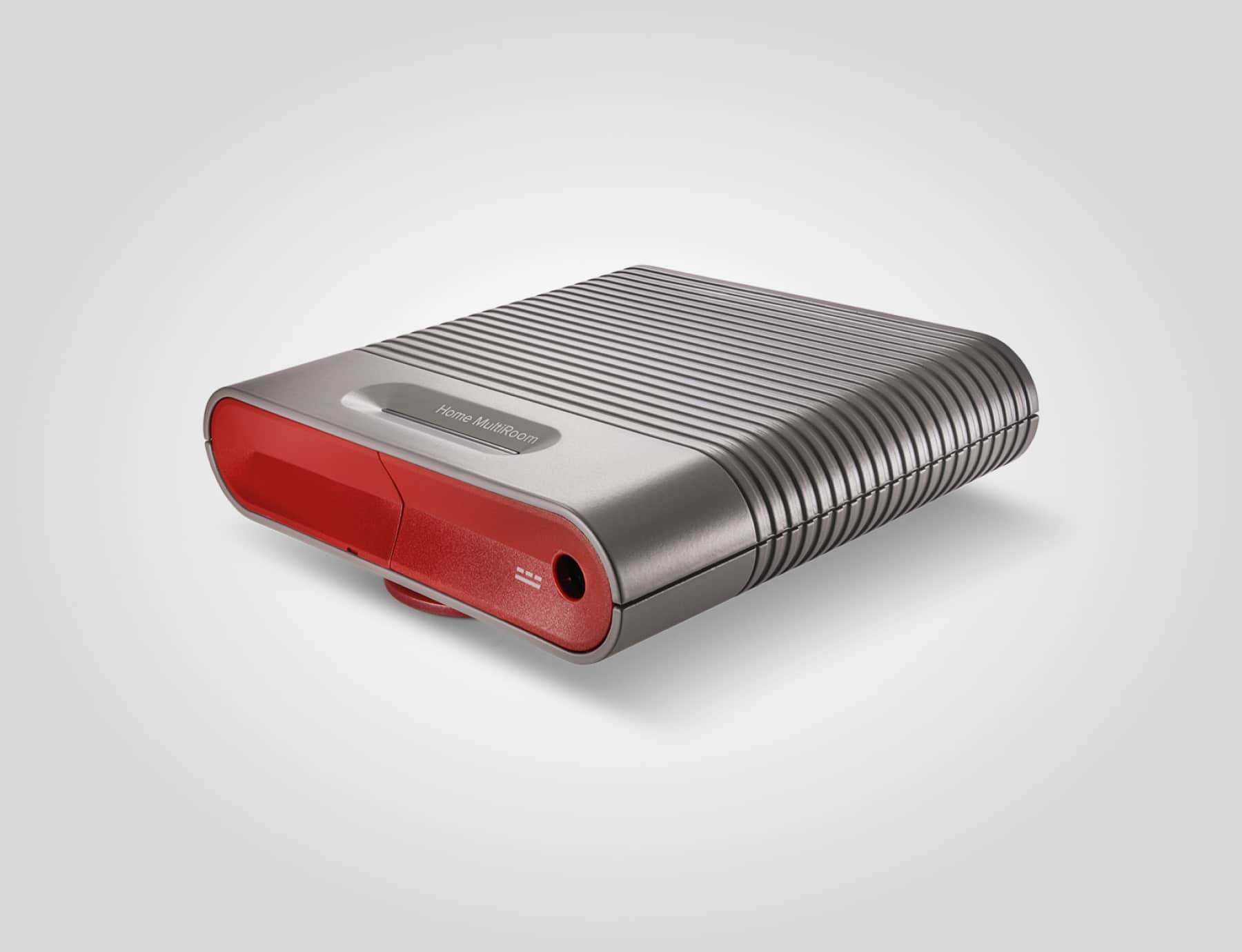

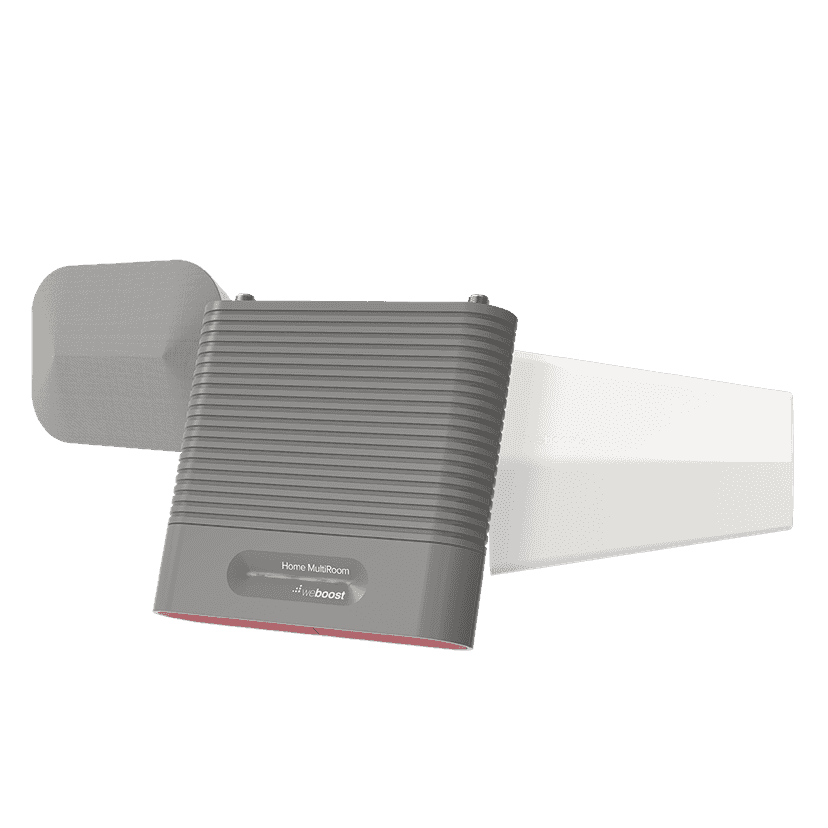

Home MultiRoom | 470144
Works on every network, on any carrier.
Product Description
With up to 21 dBm in uplink-output power, the Home MultiRoom easily reaches cell towers at distances up to 23% farther with up to 91% more coverage area—as compared to the Home 4G. It also boasts up to 12 dBm in downlink-output power. While within the Home MultiRoom’s range, users experience fewer dropped calls, better voice quality, greater hotspot capability, and faster internet speeds in designated area. The kit is designed for easy, tool-free installation.
Home MultiRoom is compatible with all cell phones, tablets, hotspots, and cellular-connected devices and on all US mobile carriers—including Verizon, Sprint, AT&T, T-Mobile, and more.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Up to 21 dBm uplink-output power for impressive range
- Set of wall-mount brackets for booster & inside antenna
- Finger-tightened outside antenna clamp and flat-window cable
- Home MultiRoom booster includes Band 25 optimization
*Can also be installed with screws (not included.)
- Reaches towers up to 23% farther away than the Home 4G
- Allows for secure, versatile install using 3M Command™ Strips*
- Provide for tool-free installation, no need to drill holes in walls
- Improves performance of LTE signal for Sprint customers

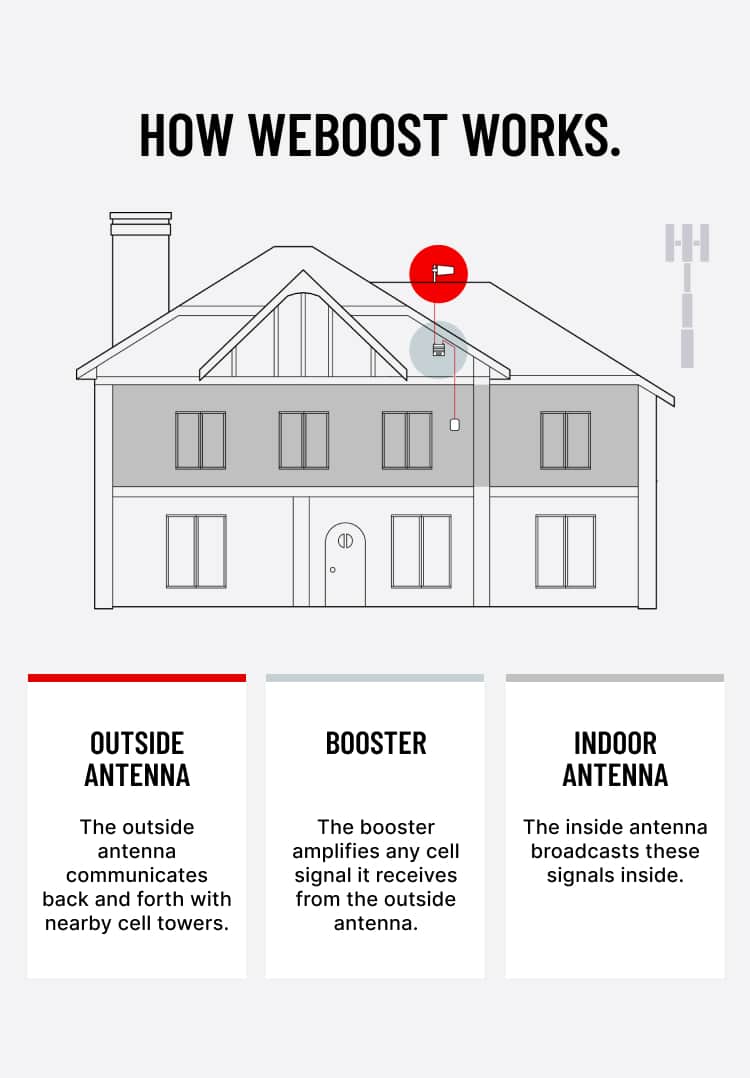

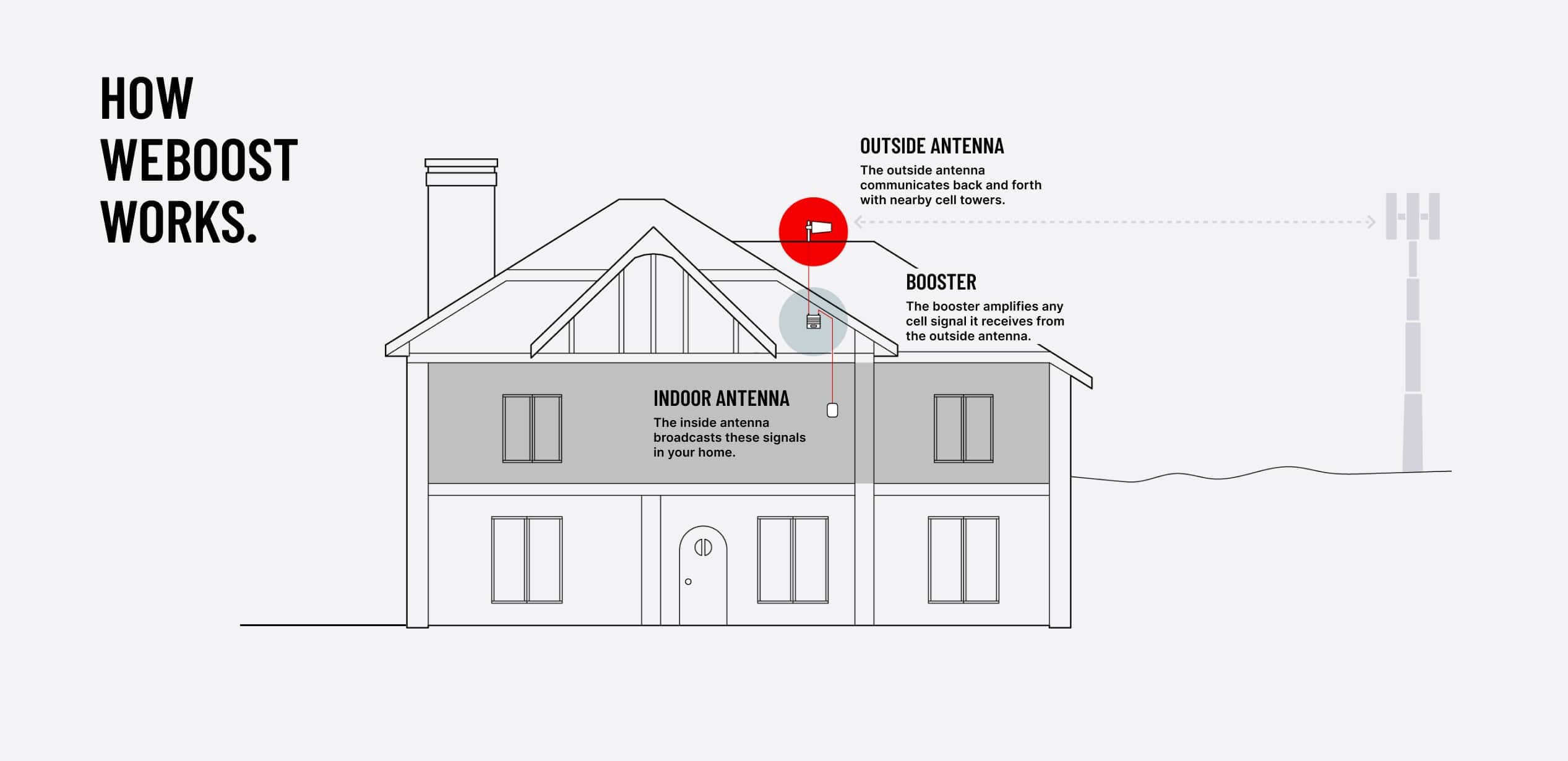

How It Works
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.
Receives
Signal

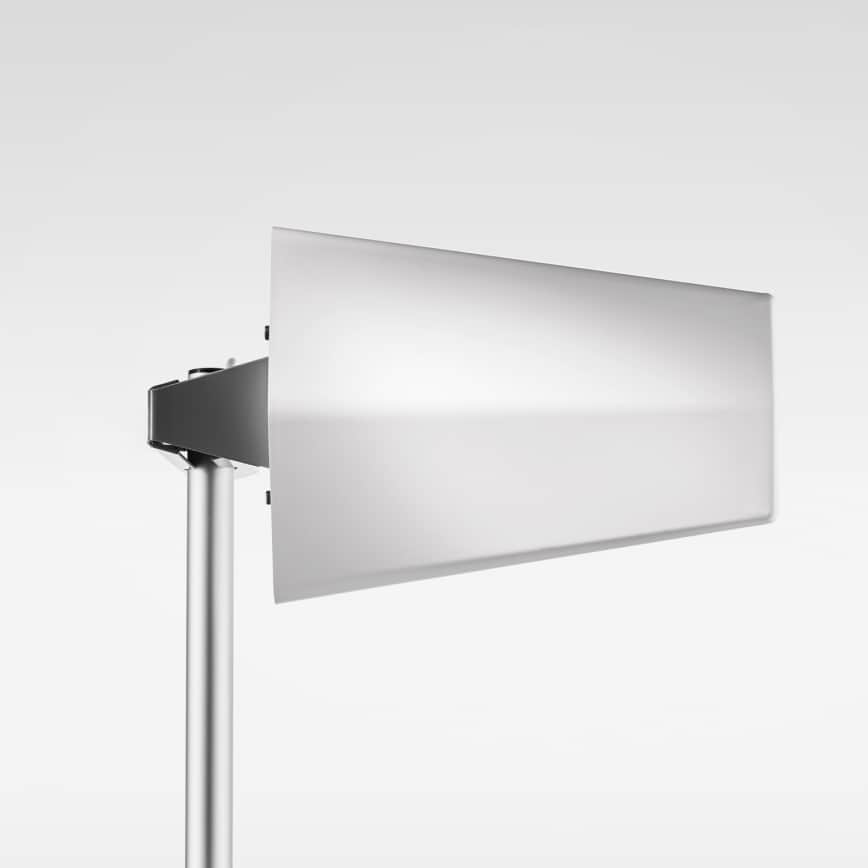

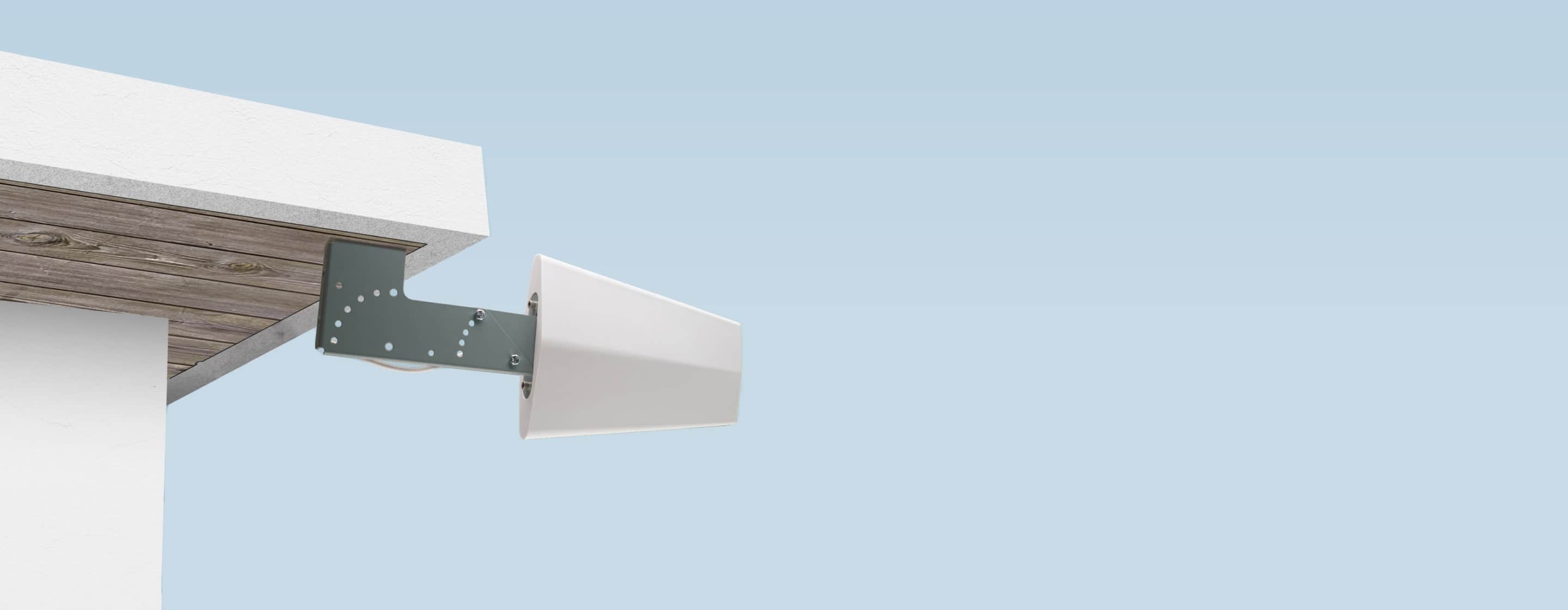

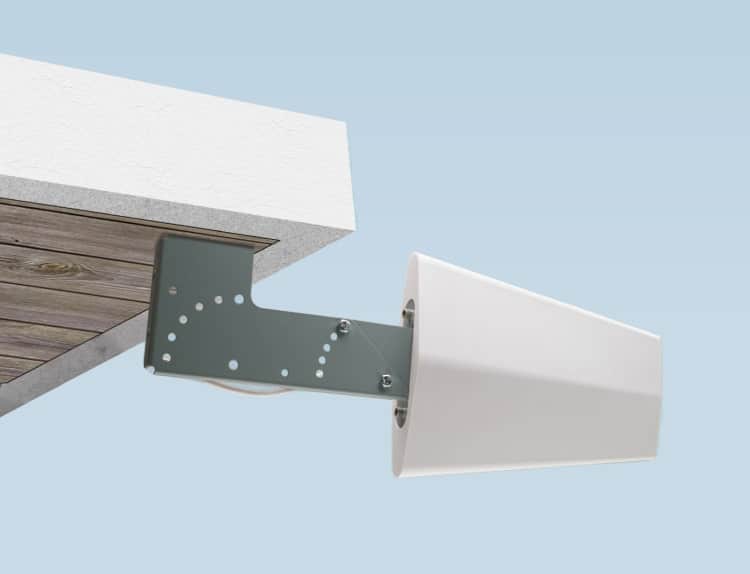

The outside antenna reaches out to the cell tower to access voice and data signals.
Transmits
Signal
The booster receives the outside signal from the outside antenna.
Boosts
Signal

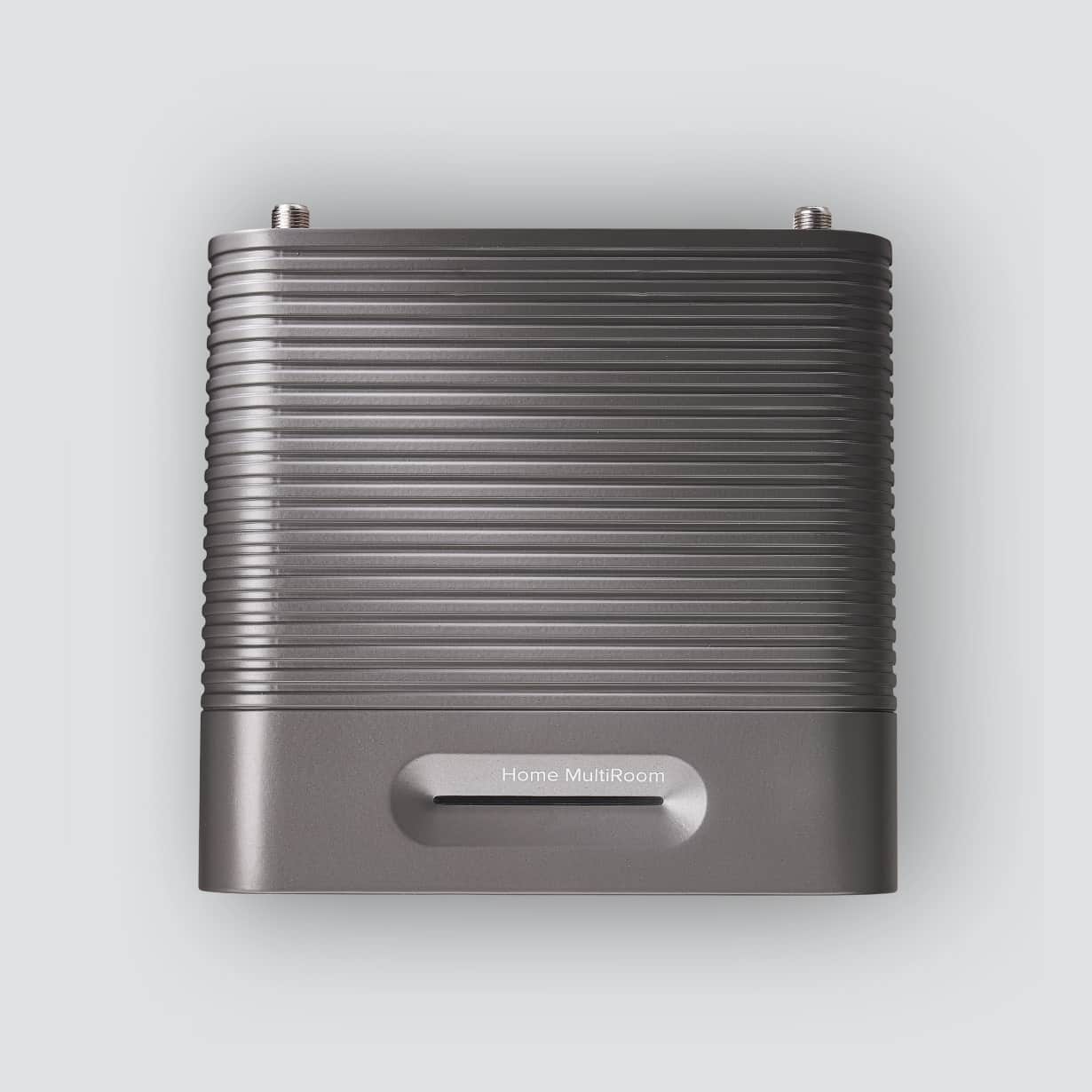

The booster amplifies the outside signal and sends it to the inside antenna.
Expands
Signal

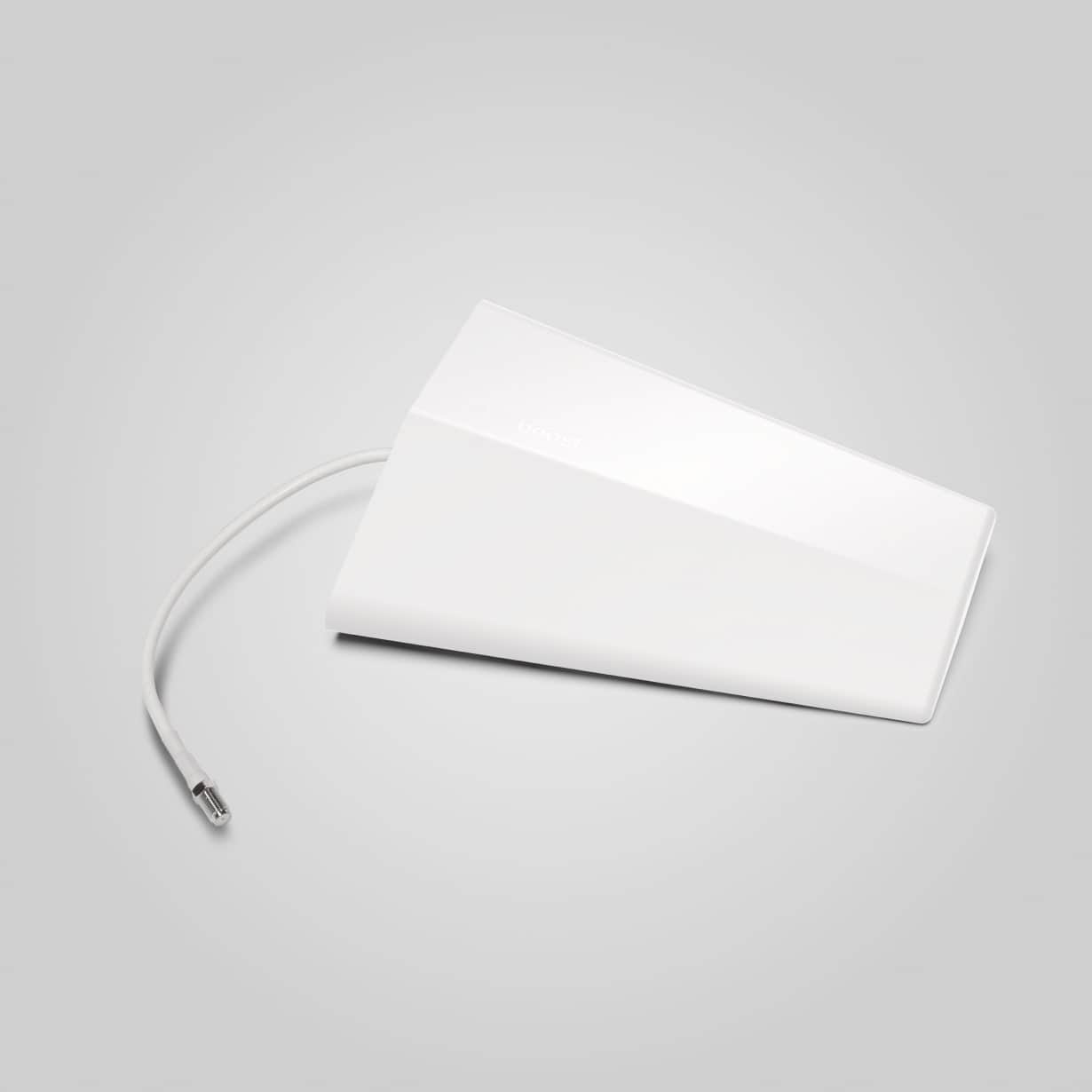

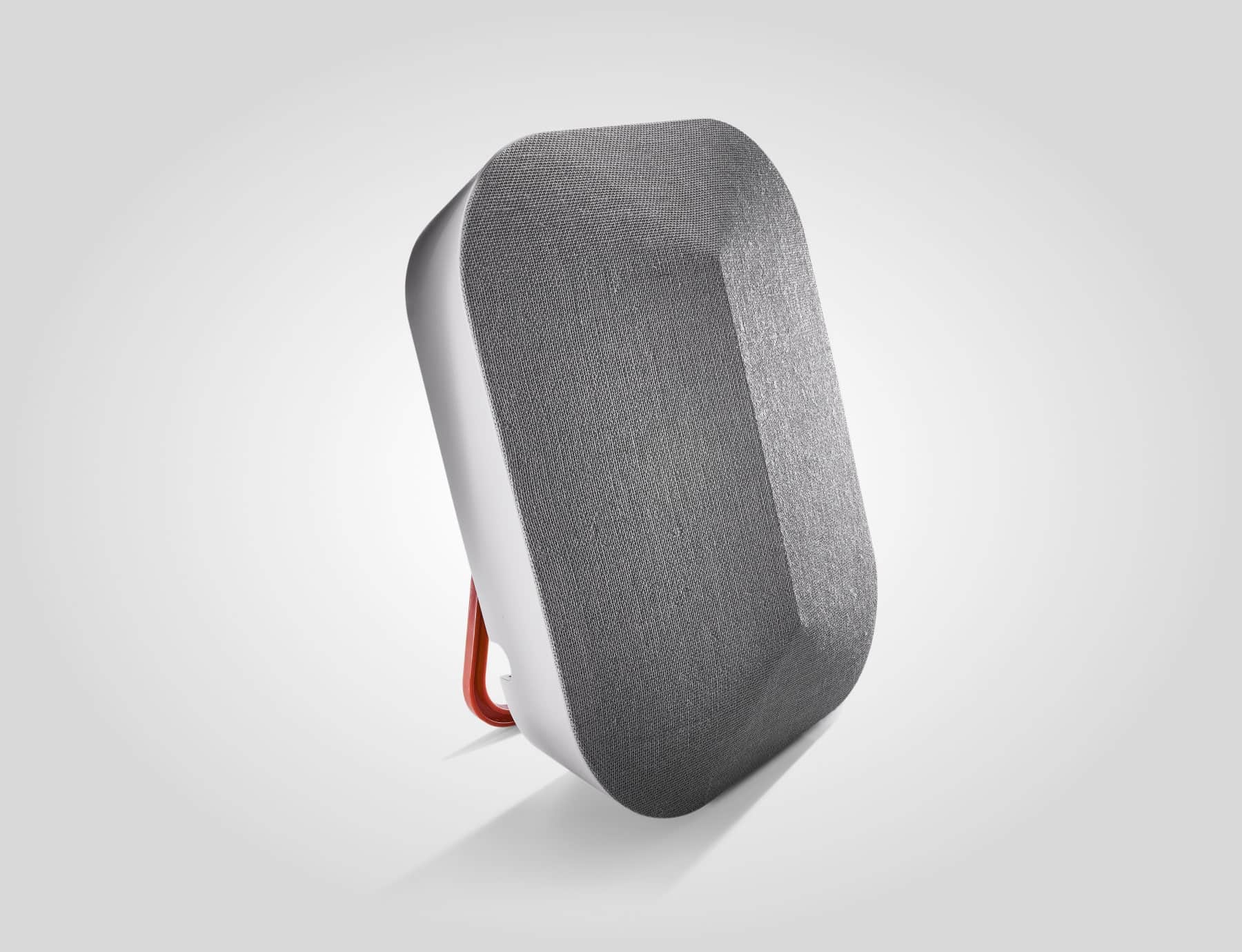

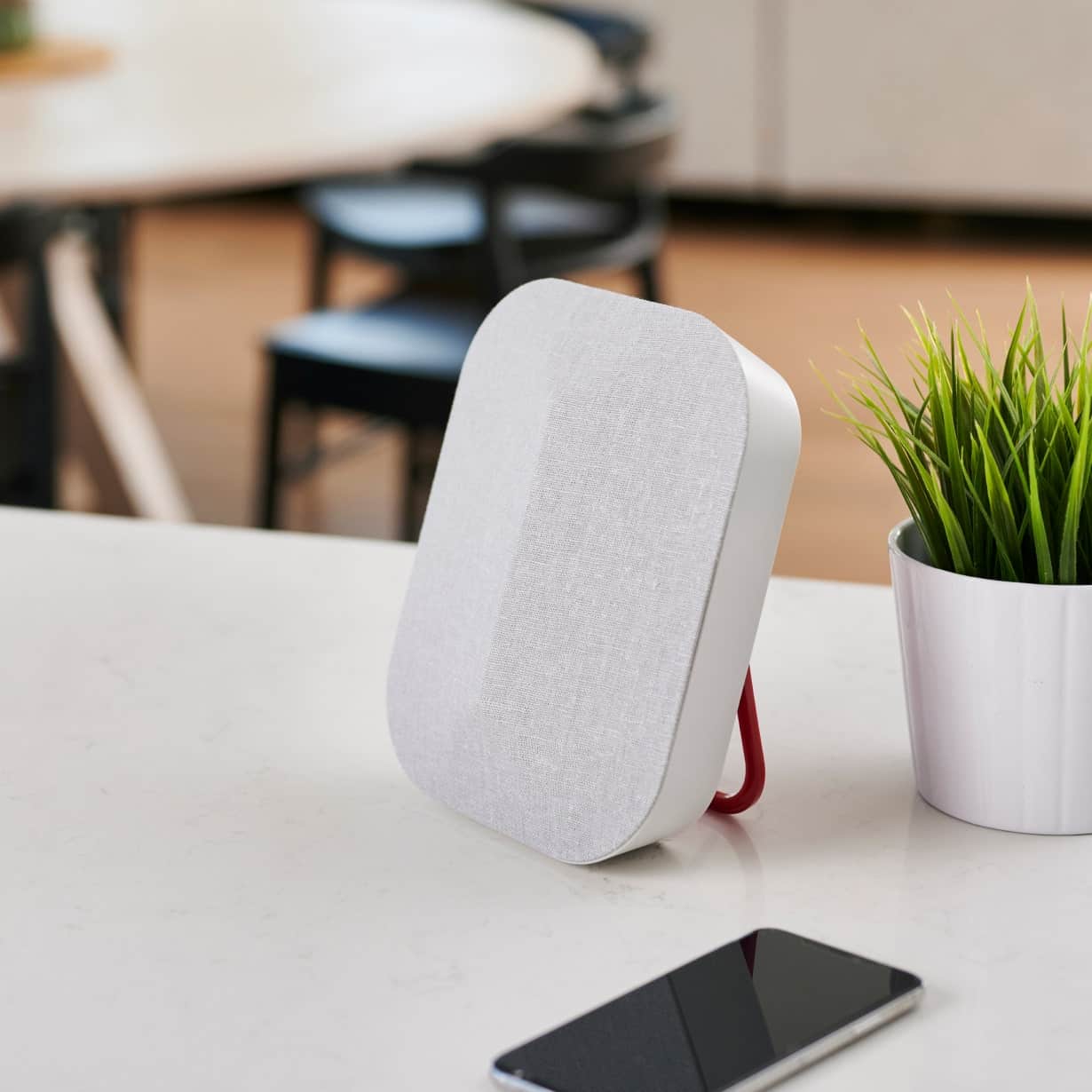

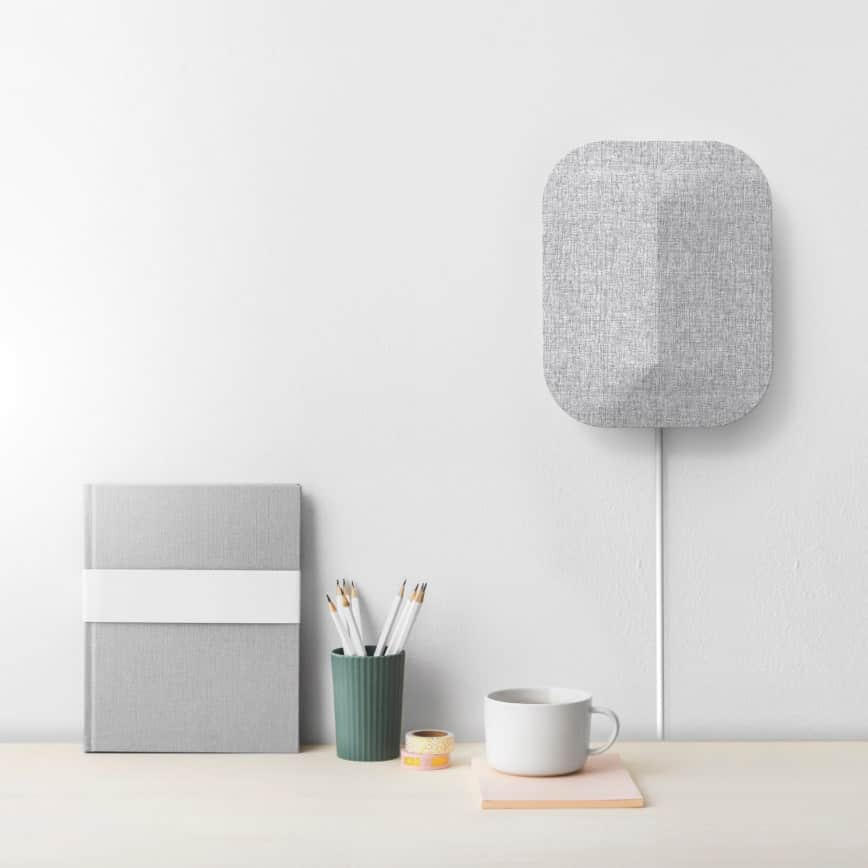

The inside antenna broadcasts the boosted signal to devices inside the home.
Specs
| Model Number: | 470144 | |
| Frequency | Band 12/17 | 700 MHz |
| Band 13 | 700 MHz | |
| Band 5 | 850 MHz | |
| Band 4 | 1700/2100 MHz | |
| Band 25/2 | 1900 MHz | |
| Max Gain | 65 dB | |
| Power Req | 110-240V AC, 50-60 Hz, 20 W | |
| Connectors | F-Female | |
| Dimensions | 6.5 x 6 x 2.625 in | |
| Weight | 1.9 lbs | |
| Price | $ 549.99 | |

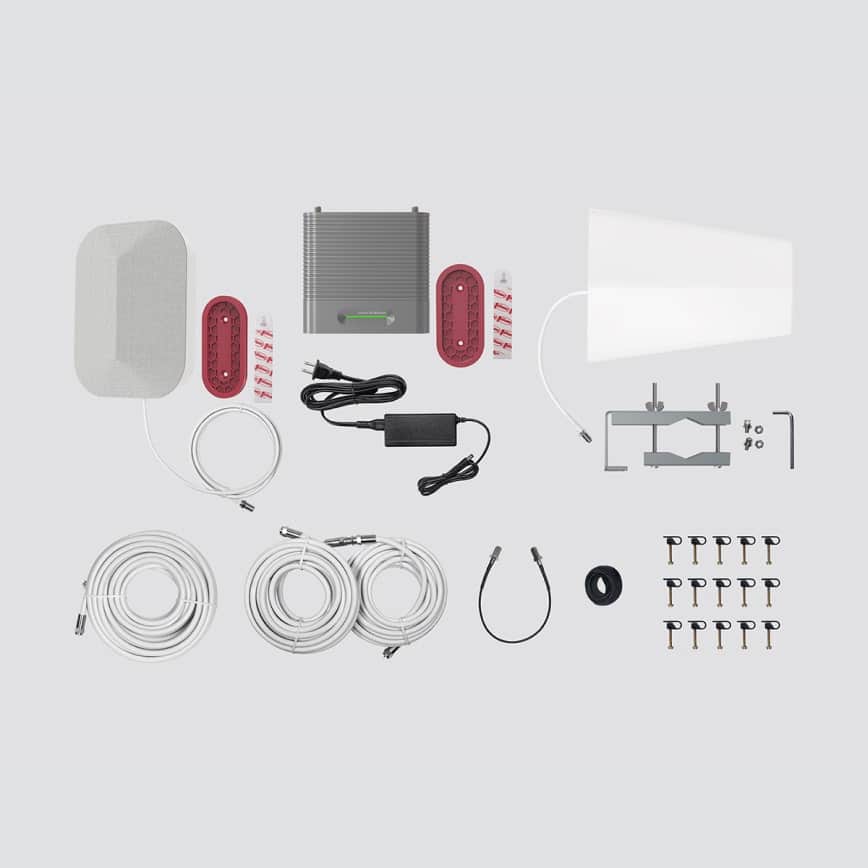

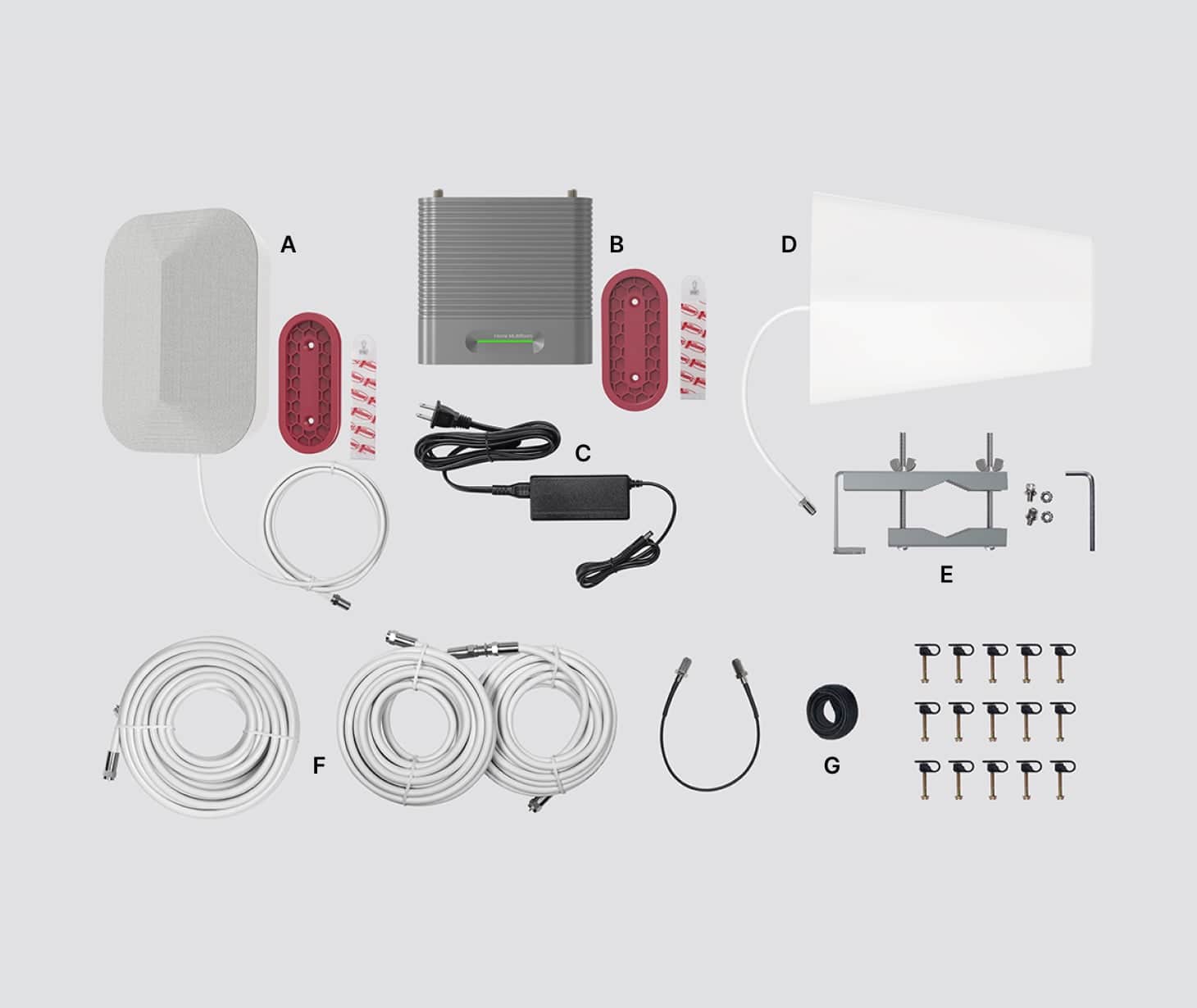

In the box
Each device comes with everything you need for a complete installation. You can also pick up extra parts to extend your installation, if you need help, just give us a call.
(470144)
(314445)
(314440)
(YX030-15W)(950630)
(951177)
(850018)
Resources
Review Snapshot
Q&A
Showing 10 out of 3 Questions
Asked by Rick 13 days ago
Question: How many phones can operate on the system at once?
Answer: As many as needed as long as there's enough coverage for everyone. The only limitation is the tower itself in providing the proper coverage needed for all phones for that carrier in the area. If you have any issues or if there's any other questions or concerns, please let us know! Our contact info for our US-based phone support is at 866-294-1660 or our online support at [email protected]
Was this question helpful to you? Yes: 0 No: 0
Asked by Tim 15 days ago
Question: What is the dimension of the outside antenna?
Answer: L" 14.25 W" 9.13 H" 4
Was this question helpful to you? Yes: 0 No: 0
Asked by Squirrelbait 21 days ago
Question: Will this cell booster also increase my wifi signal coverage?
Answer: It will not, we only can amplify cell signal. However, using a hotspot will help with WiFi indirectly since hotspots use cellular to create a WiFi signal. Hope this helps! If there's any other questions or concerns, please let us know by calling our customer support at 866-294-1660 or our online support at [email protected]
Was this question helpful to you? Yes: 0 No: 0
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
Warning.E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards
