12" Magnet Mount Antenna (FME-Female) | 301103

email me this page
Email me this page

Works on every network, on any carrier.

Product Description

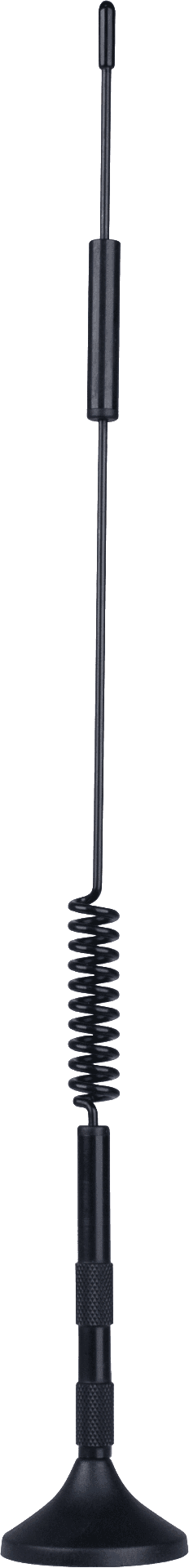

12.25 in. Magnet-mount, Omni-directional antenna, 50 Ohm, 12.5 ft of RG174 with FME-Female connector, includes mounting magnet.
Warning

Warning: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specs

Model Number:301103
Frequency700-800 MHz1.9 dB
824-894 MHz5.1 dB
880-960 MHz3.1 dB
1710-1880 MHz-4.0
1850-1990 MHz6.1 dB
2110-2170 MHz2.3 dB
Impedance50 Ohm
Antenna TypeOmni
PolarizationVertical
ConnectorsFME Female
Mount TypeRare Earth Magnet
DimensionsCoax Cable: RG-174 - 12.5 ft / 3.05 meters, Height 12.25 inches / 31.12 cm
Price$ 27.99

Review Snapshot

Ratings Distribution


    Q&A

    Showing 10 out of 8 Questions

    Asked by Greg 3 months ago

    Question: I have a Drive Sleek on my pickup. At times, I can't get an AT&T signal in the hills when I'm on a job site in Nebraska and Wyoming in the hills. Is there a taller antenna that will allow me to get a stronger signal. I need voice and data. I work all over the country.

    Answer: Yes, you can get the OTR antenna which is more powerful, robust, and much taller. You can find it here: https://www.weboost.com/products/304415 You'll also need this adapter for the antenna to connect to the Sleek: https://www.weboost.com/products/connector-sma-male-to-smb-adapter-970030 I hope this helps! If there's any other questions or concerns, please let us know by calling our customer support at 866-294-1660 or our online support at [email protected]

    Was this question helpful to you? Yes: 0 No: 0


    Asked by sth 8 months ago

    Question: does any one near lewisville texas keep these in stock

    Answer: Thank you for your question! We aren't sure. You could always try WilsonAmplifiers since they are based out of Texas. Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Grumpy Finn 2 years ago

    Question: I have 4g-X, putting it into a Land Rover LR3, roof is all glass, and rest of the car is aluminum.... I have a 1 inch tube roof rack made of steel. What do you recommend as far as antenna?

    Answer: Thank you for your question! I would recommend an OTR antenna since that's going to be the best antenna that we have available and I would recommend the Spring Mount antenna since that's going to be the shorter of the two and it's able to be mounted to a pole like a ladder or any vertical pole that's '1.5 to '2 in diameter. You may need to get the antenna from a reseller like Amazon or Wilson Amplifiers who may have the antenna available. The product number is 304415. If there's any other questions that need to be addressed, please give us a call at 866-294-1660 or contact our online support at: [email protected] Thank you!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by jh02050 4 years ago

    Question: Sprint now uses band 41 in several markets, can you please tell me how this antenna performs (i.e. 1 ~ 4dB gain ) on 2.5Ghz  (2506Mhz ~ 2566Mhz) Thanks!!

    Answer: Sprint has obtained permission to use frequencies outside of the traditional cellular range. This creates some difficulties boosting the signal, as they are not all on bands that we are legally allowed to amplify. Sprints 4G on the 2500 is also a frequency that reaches above what we can cover, and their LTE is on the 1990-1995. We are able to help their 1X, 2G, and 3G at this time. If you have additional questions, please reach out to us through our support center: https://www.weboost.com/us/support-center/

    Was this question helpful to you? Yes: 0 No: 0


    Asked by khoa cao 4 years ago

    Question: I have drive 4G-X, which antenna do I need?

    Answer: For the Drive 4G-X, we recommend staying with the 4'' magnet mount that the kit comes with. However, if you choose to upgrade to the 12'' antenna, you would need part number - 311125 found here: https://store.weboost.com/products/311125 The 4'' is recommended because it is better with data signals than the other antenna upgrades, while the 311125 is great with voice signals.

    Was this question helpful to you? Yes: 0 No: 0


    Asked by UtahPete 4 years ago

    Question: Can you explain the differences between the 4" mini and the 12" mag mount antennas?

    Answer: Here are the difference in specs between the 301126 (4'' magnetic mount), and the 301103 (12'' magnetic mount): 301126: 700-800 MHz: 1.7 824-894 MHz: 2.12 880-960 MHz: 1.5 1710-1880 MHz: 3.12 1850-1990 MHz: 3.12 2110-2170 MHz: 1.4 301103: 700-800 MHz: 1.9 824-894 MHz: 5.12 880-960 MHz: 3.1 1710-1880 MHz: -4.0 1850-1990 MHz: 6.12 2110-2170 MHz: 2.3 Overall, the 301126 (4'') is going to be better with data, where the 301103 (12'') is better with voice.

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Drich 4 years ago

    Question: I have the Drive 3G-M Weboose,   which antenna do i need?

    Answer: The Drive 3G-M comes with the 4" magnet mount antenna, which is a great antenna option. If you would like an antenna that is stronger on the voice portion of the system, you can upgrade to the 12" magnet mount antenna. There are trucker antenna options as well, but they will not be any stronger than the 12" magnet mount antenna seen here: https://store.weboost.com/products/311125

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Whit 4 years ago

    Question: Just purchased Antenna 301103 fem for Sleek 4g model 460007. Is this correct

    Answer: The Sleek 4G has an SMA Female connector on it. You need the 311125 antenna seen here: https://store.weboost.com/products/311125 Since you have already ordered the 301103, you can use the 971119 adapter seen here: https://store.weboost.com/products/connector-971119

    Was this question helpful to you? Yes: 0 No: 0


    BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.

    Warning.

    E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards
