Mini Magnet Mount Antenna (FME-Female) | 301113

email me this page
Email me this page

Works on every network, on any carrier.

Product Description

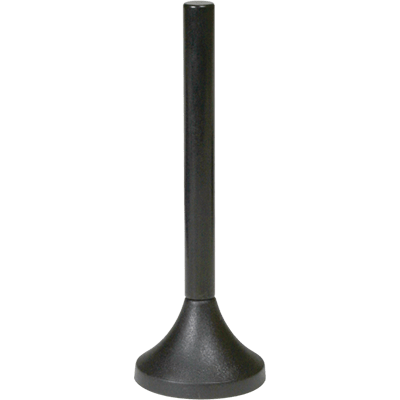

4.175 in. Magnet-mount, omni-directional antenna, 50 Ohm, magnet mount, 12.5 ft of RG174 with FME-Female connector, includes mounting magnet.
Warning

Warning: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specs

Model Number:301113
Frequency700-800 MHz1.7 dB
824-894 MHz2.1 dB
880-960 MHz0.5 dB
1710-1880 MHz2.2 dB
1850-1990 MHz3.1 dB
2110-2170 MHz1.4 dB
Impedance50 Ohm
Antenna TypeOmni
PolarizationVertical
ConnectorsFME Female
Mount TypeRare Earth Magnet
DimensionsCoax Cable: RG-174 - 12.5 feet, Height: 4.175 in
Price$ 24.99

Review Snapshot

Ratings Distribution


    Q&A

    Showing 10 out of 7 Questions

    Asked by wstaege 5 months ago

    Question: Will this work with a 470510 Drive 4G-X?

    Answer: Thank you for your question! No, you'll need the SMA antenna which is 301126. Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Chaun 5 months ago

    Question: I have model 460007 witch antenna do in need? Thanks

    Answer: Thank you for your question! This antenna should be the one! Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Mike Litt a year ago

    Question: I need a new antenna for my Wilson Cell phone booster. Model# 271220. Which antenna do I need to purchase for this model?

    Answer: Thank you for your question! That's the correct antenna, but the end needs to be the SMA Male. You can find that here: https://www.weboost.com/products/301126 Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Ulfh 3 years ago

    Question: I have a 4G Xamplifier. A car wash took my mini antenna and ripped the cable out of the amplifier. Is it a female or male connection on the amplifier

    Answer: Thank you for reaching out to us! The Drive 4G-X has SMA Female ends, therefore the 301126 is the correct outside antenna. Please reach out to us for additional questions here: http://support.weboost.com/hc/en-us/requests/new

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Russell 4 years ago

    Question: I have the 4G-M vehicle booster and my cable got cut do I need the male or female connection? My existing antenna cable has a spinning nut on the end of it.

    Answer: Thank you for your question. The Drive 4G-M will have an SMA (F) connection. Our mobile antenna 301126 (4" mini magnetic mount) will have an SMA (M) connector. If you have any other questions feel free to reach out to us here: http://support.weboost.com/hc/en-us/requests/new

    Was this question helpful to you? Yes: 0 No: 0


    Asked by MarkHWing 4 years ago

    Question: I have a 4G-S cradle booster with mini mag antenna. I want to mount the antenna to the top of my motorhome using an old antenna dish as the magnetic mount point. Can I extend the cable by adding a cable union and more cable?

    Answer: We do not like to recommend adding cable to the vehicle antennas, because of signal loss. We recommend trying to work with the length of the cable on the antenna if at all possible. In order to go over loss, and potential cable extensions, we recommend reaching out to us directly by submitting a ticket. You can submit a ticket here: http://support.weboost.com/hc/en-us/requests/new

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Andy 4 years ago

    Question: Does this antenna  need a ground plane?  I am putting on an RV roof and would like to just VHB it to the fiberglass roof

    Answer: This antenna will require a ground plane. For RV roofs, we recommend installing a 4'' steel plate to the top, and applying the antenna to the metal plate.

    Was this question helpful to you? Yes: 0 No: 0


    BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.

    Warning.

    E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards
