Desktop Antenna | 301211

email me this page
Email me this page

Works on every network, on any carrier.

Product Description

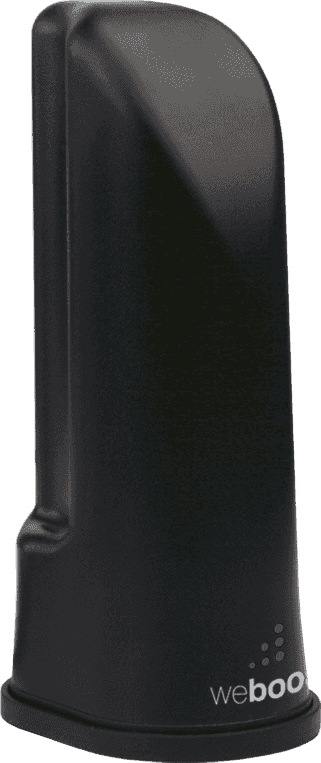

5.13 x 1.56 in. 4G Desktop cellular antenna, black cylinder, 50 Ohm, Omni-Directional, Desktop use, 5 ft. of RG174 with SMA-Male connector.

Commonly used with the Home 4G.

Warning

Warning: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specs

Model Number:301211
Frequency700-800 MHz-0.8 dB
824-894 MHz1.5 dB
880-960 MHz1.2 dB
1710-1880 MHz2.4 dB
1850-1990 MHz3.4 dB
2110-2170 MHz1.2 dB
Impedance50 ohms
PolarizationVertical
ConnectorsSMA Male
Mount TypeMinimum 6 inches away from metal
DimensionsCoax Cable: RG174 - 5 ft / 1.524 m, Height: 5.13 inches / 13 cm, Width: 1.56 in / 4 cm
Price$ 29.99

Review Snapshot

5
(1)

Ratings Distribution

  • 1 Star: 0
  • 2 Stars: 0
  • 3 Stars: 0
  • 4 Stars: 0
  • 5 Stars: 1

5

works great

I bought four months ago and works great, would recommend to anybody

Bottom Line Yes, I would recommend to a friend

Was this review helpful to you? Yes: 16 No: 3

Submitted 3 years ago

By pineman

From Manitoba, Canada

Verified Buyer

Q&A

Showing 10 out of 17 Questions

Asked by Michael 13 days ago

Question: Why does the Desktop Antenna 30121 only cost a tenth or less of other antennas? I just want to be able to make calls from my desk in my 'barn' (home office) in a rural area. Is this what I need?

Answer: Thank you for your question! The desktop antenna is our smallest RV and building antenna. When used with the Home Room, you can get up to 1,500 sq. ft. of coverage. When used with a vehicle booster, you can expect to get up to 10 ft of coverage. It is important to note that the coverage expectation of a booster is highly dependant on the outside signal strength. A weaker outside signal will degrade the inside coverage. I recommend reaching out to our support team at 866-294-1660 or email them at [email protected] They would be able to assist you with figuring out exactly what you would need to cover your desk area. Thank you!

Was this question helpful to you? Yes: 0 No: 0


Asked by Kim 3 months ago

Question: I have a booster model # 271265 and the desktop antenna got damage and will not work my antenna # 3011210 will this work as a replacement

Answer: Yup! That'll work!

Was this question helpful to you? Yes: 0 No: 0


Asked by Saundra 4 months ago

Question: I have the weboost connect 4G. Will this antenna work with it?

Answer: Thank you for your question! It could with the right connections, however the panel antenna with the coax provided will work far better and be of greater benefit than the desktop antenna. Was there a reason that you would like the desktop antenna more than the panel? I'm assuming it's a little more convenient? Let us know! If there's any other questions or concerns, please let us know by calling our customer support at 866-294-1660 or our online support at [email protected] Thanks again!

Was this question helpful to you? Yes: 0 No: 0


Asked by gefrank 5 months ago

Question: If I have my mobile hotspot external antenna plugged into this unit, (it has a port) and an indoor antenna mounted in another area of the house to get the best signal. Would this wirelessly connect to it? Thank You,

Answer: Thank you for your question! No this would not wirelessly connected. All of our antennas need to be connected to an amplifier to be able to cast cellular signal. Since this is WiFi it will not work. Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

Was this question helpful to you? Yes: 0 No: 0


Asked by David 6 months ago

Question: Will this work with a 3G system. The cable to the indoor got damaged and I'd like to replace just this part.

Answer: Thank you for your question! Yes, I would reach out to our customer support for a replacement if this is a newer unit. If it's within warranty we will send out parts for free to help our customers out. It may be worth a shot! Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

Was this question helpful to you? Yes: 0 No: 0


Asked by Bill 8 months ago

Question: What is the range of this desktop antenna? Can it be mounted 6 to 8 feet away from the actual usage work surface?

Answer: Thank you for your question! It's not likely that the antenna will reach that far. You're going to need to be 1-2 feet away from the antenna for coverage. In weak areas you may need to be closer to the antenna. Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

Was this question helpful to you? Yes: 0 No: 0


Asked by Gringo 9 months ago

Question: I have the Drive 4G-X OTR can I use this antenna.

Answer: Thank you for your question! Yes, it's entirely possible to do that. Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

Was this question helpful to you? Yes: 0 No: 0


Asked by OX 10 months ago

Question: Would this work inside a concrete building with a metal roof?

Answer: Thank you for your question! This is an antenna only you'll need an amplifier like the Connect 4G or Connect 4G-X for a larger scale building. Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

Was this question helpful to you? Yes: 0 No: 0


Asked by Tcro 3 years ago

Question: Hi, I want this for my basement because its the only place in the house I don't get service. Will this help me get service, and how does it connect? I have a ZTE axon 7.

Answer: Thank you for reaching out. This antenna is primarily used for the inside coverage area of our boosters. There are ways to attach antennas to the phone, but you would likely need to have an antenna outside, if you get no coverage in the basement. We take current signal and boost that as long as it's usable. We would like to work with you directly to see if we can find a solution for you. Please reach out to us here: http://support.weboost.com/hc/en-us/requests/new

Was this question helpful to you? Yes: 0 No: 0


Asked by Adam030 3 years ago

Question: I use my Galaxy S7 at work where there is no wifi to connect to. In the area i work in my data signal is fairly low so it makes it difficult to web browse or stream videos. So im looking for something that would boost my cell phones signal. ThisDoThat?

Answer: Thank you for your question. Our booster will help internet connection, as long as its coming from a cellular tower. We would like to work with you directly to ensure there is enough signal to boost, and that we choose the best booster for your situation. You can reach us here: http://support.weboost.com/hc/en-us/requests/new Or by phone at 866-294-1660.

Was this question helpful to you? Yes: 0 No: 0


BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.

Warning.

E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards
