4G OTR Antenna Truck Edition | 304415

email me this page
Email me this page

Works on every network, on any carrier.



Available for purchase at select:
Pilot/Flying J

Product Description

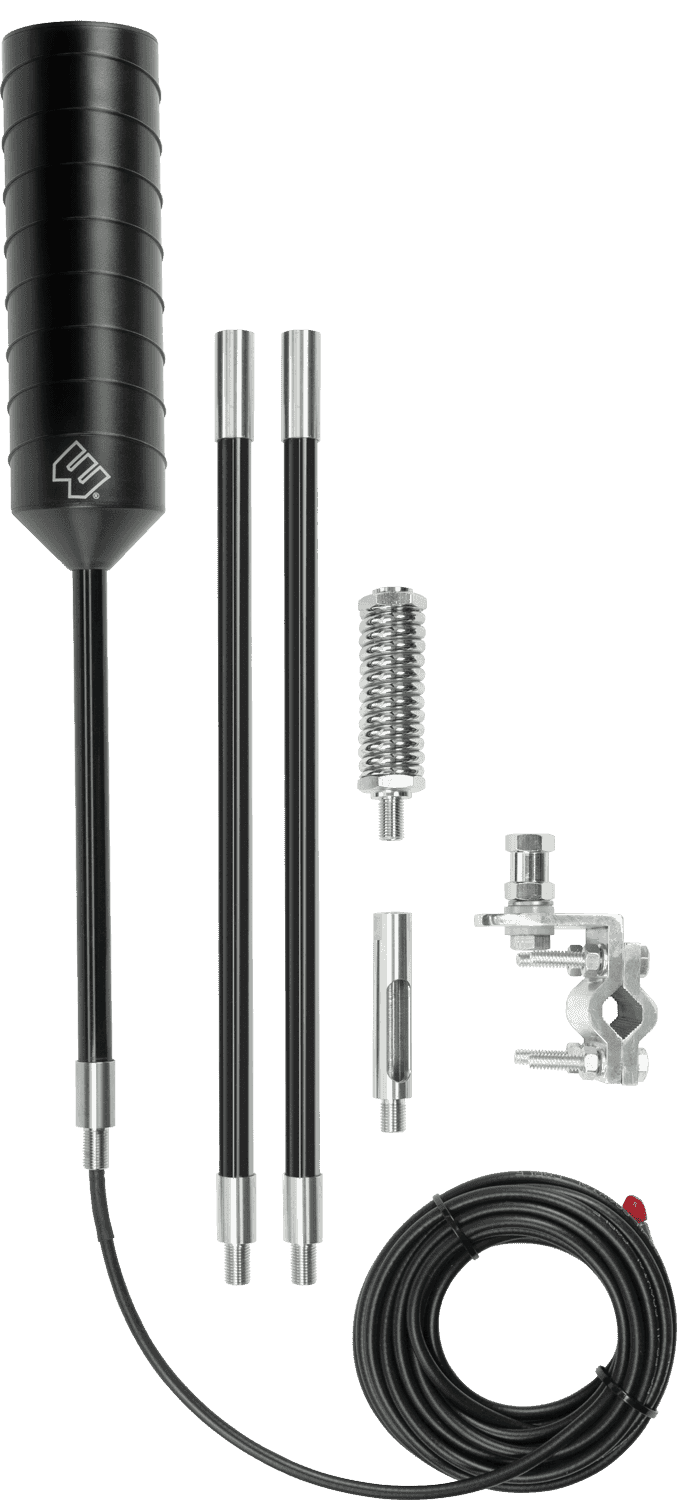

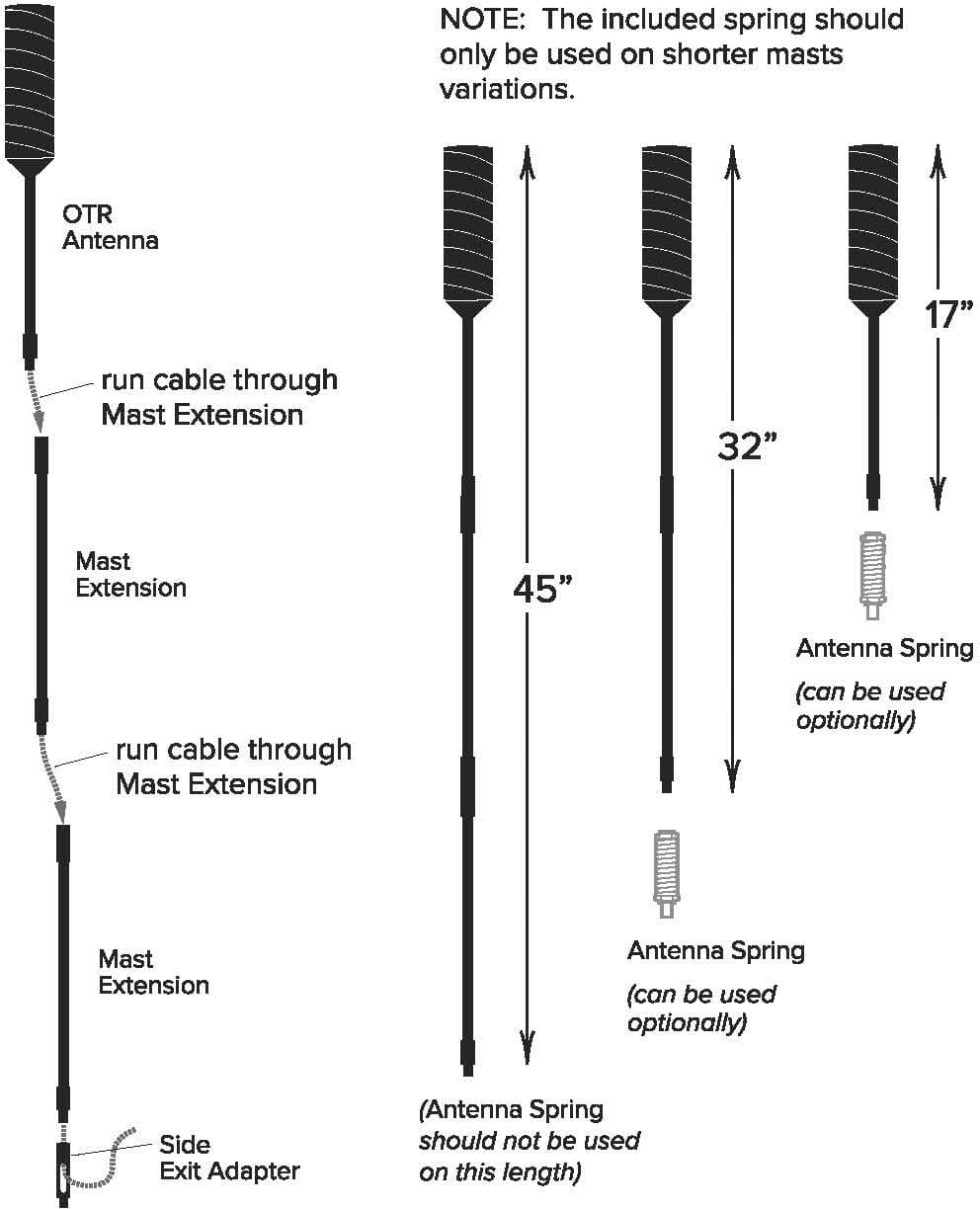

The 17 inch 4G-OTR Antenna Truck Edition kit comes with parts to accommodate multiple installation options. Included in the kit are 2 mast extensions (13¼ x 5/8), 3-way antenna mount, side exit adapter, antenna spring, cable adapter and thread lock packets.

This kit is commonly used with the Drive Reach, Drive 4G-X OTR and Drive Sleek OTR products.

For compatibility with the Drive Reach Cell Signal Booster Kit (470154), this antenna requires an SMA Male to SMB Adapter (970030).

*Wilson Electronics is not affiliated with Wilson Antennas

Warning

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specs

Model Number:304415
Frequency700-900 MHz2.5-3.5 dBi
1710-2270 MHz2.5-3.5 dBi
1850-2160 MHz2.5-3.5 dBi
Impedance50 Ohm
Maximum Input Power50W
Antenna TypeOmni-directional
PolarizationVertical
ConnectorsSMA Female with SMA Male to SMA Male adapter
Mount Type3/8-24 Threaded Stud
DimensionsCoax Cable: RG-58 - 14 ft, Height: 17 inches
Price$ 109.99

Review Snapshot

5
(1)

Ratings Distribution

  • 1 Star: 0
  • 2 Stars: 0
  • 3 Stars: 0
  • 4 Stars: 0
  • 5 Stars: 1

5

Best antenna so far!

Needing a solid antenna for 4G connections, this was the best solution. Instantly signal strength went up! simply amazing!

Bottom Line Yes, I would recommend to a friend

Was this review helpful to you? Yes: 29 No: 3

Submitted 3 years ago

By Koji

From Las Vegas, NV, USA

Verified Buyer

Q&A

Showing 10 out of 31 Questions

Asked by Connor 13 days ago

Question: What's the difference between the 4G OTR and the 4G Marine antennas?

Answer: The OTR antenna is recommended for RV or semi-truck use. The Marine antenna is recommended for boats as it is designed to handle the environment better and has a slightly better gain. The Marine antenna is also compatible with our marine mount for boat use. If you have any other questions that need to be addressed, please feel free to reach back to us at 866-294-1660 or email our online support at [email protected] Thank you and have a great day!

Was this question helpful to you? Yes: 0 No: 0


Asked by Christian 19 days ago

Question: Does this antenna setup works on cellular bands for voice and 4G data (Boosts voice & data) ??

Answer: Thank you for your question! Yes, the OTR antenna works for both voice and 4G data. However, it is important to note that if there is no signal at all, the booster will not be able to amplify it. Also the weaker the signal is, the harder it will be for the booster to amplify. If you have any other questions that need to be addressed, please feel free to reach back to us at 866-294-1660 or email our online support at [email protected] Thank you and have a great day!

Was this question helpful to you? Yes: 0 No: 0


Asked by David 2 months ago

Question: I have the Drive 4G-X, do I need an adapter to connect the 4G OTR Antenna Truck Edition | 304415 or will it connect directly, if so which adapter?

Answer: The OTR antennna 304415 will come with the SMA Male to SMA Male adapter needed to connect the antenna to the booster. If you have any other questions that need to be addressed, please feel free to reach back to us at 866-294-1660 or email our online support at [email protected] Thank you and have a great day!

Was this question helpful to you? Yes: 0 No: 0


Asked by David 2 months ago

Question: I have the Drive 4G-X, would there be any benefit of changing to this antenna to increase signal compared to the standard 4" antenna that came with it?

Answer: Thank you for your question! Both antennas offer about the same performance but the OTR antenna has the advantage of being extended higher for potentially a stronger signal. If you have any other questions that need to be addressed, please feel free to reach back to us at 866-294-1660 or email our online support at [email protected] Thank you and have a great day!

Was this question helpful to you? Yes: 0 No: 0


Asked by Dave 3 months ago

Question: I am going to mount this antenna to my RV, how close can it be to the TV antenna?

Answer: Thank you for your question! We recommend having the antenna at least 12 inches away from any other antenna. The booster will notify you if it is receiving any feedback by bringing up a red light when it is first powered on. Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

Was this question helpful to you? Yes: 0 No: 0


Asked by James 3 months ago

Question: Will this antenna work with the home version of the weboost amplifier.

Answer: Thank you for your question! The OTR antenna is meant for vehicle use only. If you are looking for an omni directional antenna for your home system, we recommend using the building omni directional antenna. Depending on the system that you have, you would either get the 50 ohm or 75 ohm omni directional antenna. If you have any other questions that need to be addressed, please feel free to reach back out to us at 866-294-1660 or email us at [email protected] Thank you and have a great day!

Was this question helpful to you? Yes: 0 No: 0


Asked by Sam 4 months ago

Question: Will this antenna work with the Drive 4G-M?

Answer: Yes, it will. If you have any issues or if there are any other questions or find concerns, please let us know! Our contact info for our US-based phone support is at 866-294-1660 or our online support at [email protected]

Was this question helpful to you? Yes: 0 No: 0


Asked by Carlos Morales 4 months ago

Question: With what signal booster is this antena going to perform better? With the Dive 4G-X or Drive Reach?

Answer: They both will help but with the Drive Reach being a better amplifier, it will most likely help with that amplifier more in certain situations. The most important factor is being able to have a signal available where you're going to be traveling to and from. If you have any issues or if there are any other questions or find concerns, please let us know! Our contact info for our US-based phone support is at 866-294-1660 or our online support at [email protected]

Was this question helpful to you? Yes: 0 No: 0


Asked by Rick 5 months ago

Question: Can this be used as a CB radio antenna?

Answer: Sorry, it can't. These can only be used for cellular service only. If you would like to know more about our products, please do so by calling our customer support at 866-294-1660 or our online support at [email protected]

Was this question helpful to you? Yes: 0 No: 0


Asked by Wyatt 6 months ago

Question: How will a car wash affect this antenna, ie do I have to remove it before entering a drive through car wash.

Answer: We recommend taking it of since it's pretty simple to take down. A RAM mount might be the best for mounting options since it makes that process even easier when the antenna is not in use.

Was this question helpful to you? Yes: 0 No: 0


BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.

Warning.

E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards
