Window Mount Panel Antenna (F-Female) | 304472

email me this page
Email me this page

Works on every network, on any carrier.

Product Description

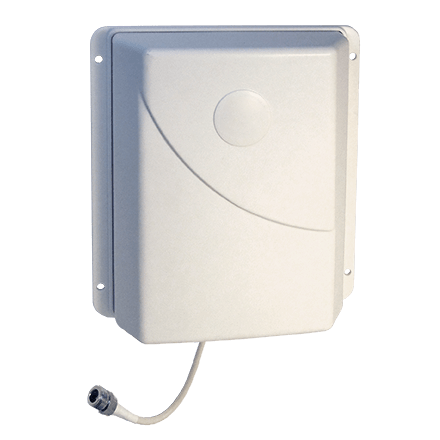

8 x 7 x 2 in. 4G Building cellular antenna, white panel, 75 Ohm, Directional, Window mount, 9 in. RG6 pigtail with F Female connector.

Warning: Cancer and Reproductive Harm -


Model Number:304472
Frequency700-800 MHz5.2 dB
824-894 MHz4.4 dB
880-960 MHz4.2 dB
1710-1880 MHz10.1 dB
1850-1990 MHz10.6 dB
2110-2170 MHz8.2 dB
Impedance75 Ohms
Maximum Power50 watts
Dimensions8.27 x 7.09 x 1.73 inches, 21 x 18 x 4.39 cm
Beamwidth Vertical Plane50°/45°
Ground PlaneBuilt-in Ground Plane
Price$ 89.99

Review Snapshot


Ratings Distribution


    Showing 10 out of 1 Questions

    Asked by Aponte a year ago

    Question: How much is your booster kit for 3g CDM phone. 700/800MHz. Need the most economical. Please give the most economical kit. Will be using it in central america

    Answer: This is only for 3G for one device. It will work for voice as long as there's enough signal for it to use.

    Was this question helpful to you? Yes: 0 No: 0

    BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.


    E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards
