12" Magnet Mount Antenna (TNC-Male) | 311128

email me this page
Email me this page

Works on every network, on any carrier.

Product Description

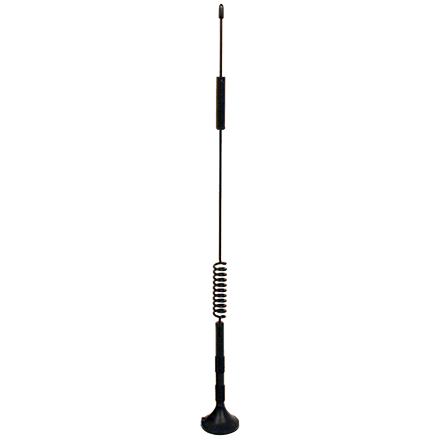

12.25 in. Magnet-mount, Omni-directional antenna, 50 Ohm, 12.5 ft of RG174 with TNC-Male connector, includes mounting magnet.
Warning

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specs

Model Number:311128
Frequency700-800 MHz1.9 dB
824-894 MHz5.1 dB
880-960 MHz3.1 dB
1710-1880 MHz-4.0 dB
1850-1990 MHz6.1 dB
2110-2170 MHz2.3 dB
Impedance50 Ohm
Antenna TypeOmni
PolarizationVertical
ConnectorsTNC Male
Mount TypeRare Earth Magnet
DimensionsCoax Cable: RG-174 - 12.5 ft / 3.05 meters, Height: 12.25 inches / 31.12 cm
Price$ 27.99

Resources

Review Snapshot

Ratings Distribution


    Q&A

    Showing 10 out of 3 Questions

    Asked by CaptJack 4 months ago

    Question: Will this antenna work with the Drive 4G-X and is an adapter needed?

    Answer: Thank you for your question! I would go with the SMA connection here: https://www.weboost.com/products/311125 Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by capwolfe 4 years ago

    Question: i have a motorolla x cell phone verszon carrier , it says you need to plug in a headset to act as antennea in the headset jack so will this work with  your antennea?

    Answer: Most newer cell phones do not allow for an external antenna connection. However, we would like to look into your situation in greater detail. Please submit a ticket here, so we can help determine which generation of cell phone you have, and help decide what possible solutions we might have. You can submit a ticket here: http://support.weboost.com/hc/en-us/requests/new

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Rachel 4 years ago

    Question: Will this antenna work with the PCS 824-894 Wilson dual band signal booster? I need a replacement antenna. Thank you.

    Answer: This antenna has the all the frequencies you would need to work with the PCS booster. The connection on this booster may be different than the TNC provided on this antenna, depending on when your booster was manufactured. You are more than welcome to reach out to our customer support team, where we can check your booster by serial number to verify that this antenna will connect right in. Or, we can help determine which connector you would need to utilize this antenna.

    Was this question helpful to you? Yes: 0 No: 0


    BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.

    Warning.

    E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards
