Indoor Wall Mount Antenna (N-Female) | 311135

email me this page
Email me this page

Works on every network, on any carrier.

Product Description

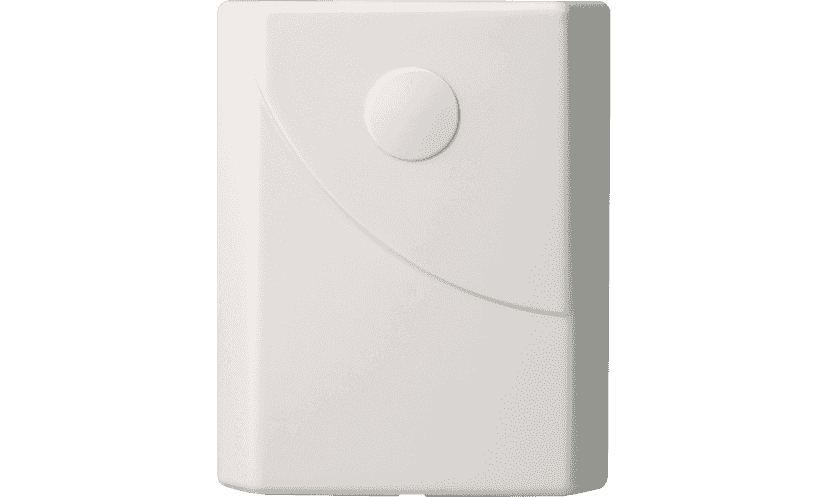

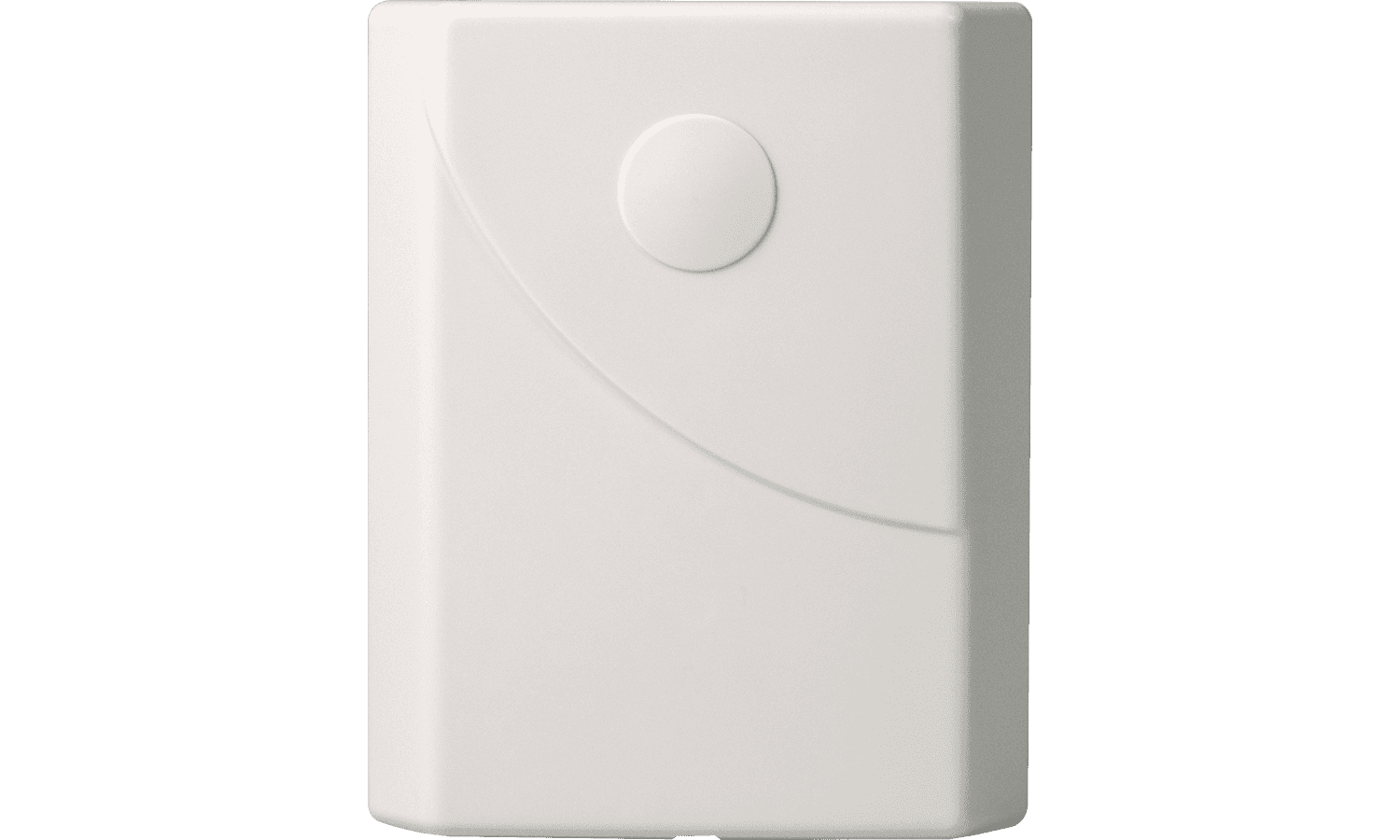

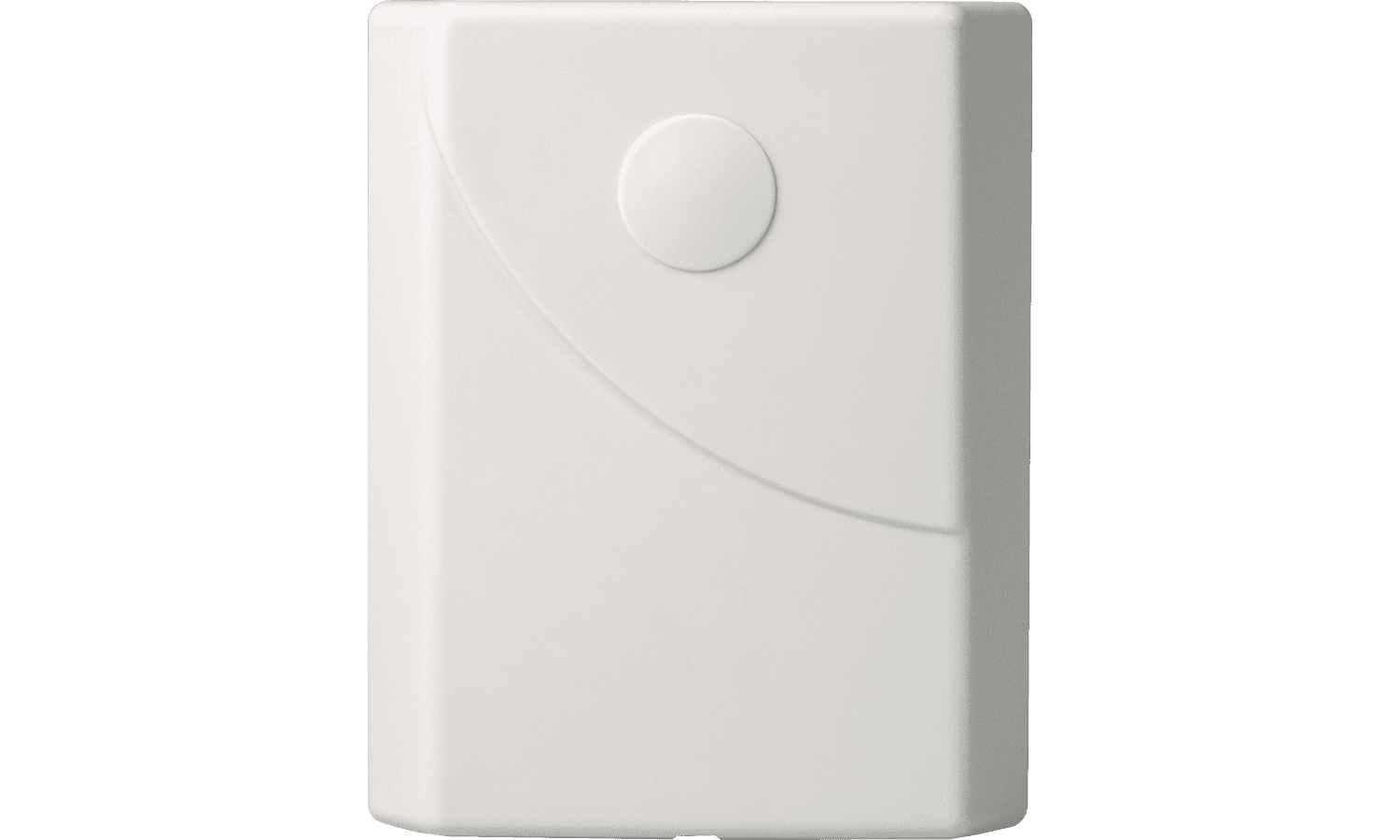

8 x 7 x 2 in. 4G Building cellular antenna, white panel, 50 Ohm, Directional, Wall mount, 9 in. pigtail with N-Female connector. Commonly used with the Connect 4G-X
Warning

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specs

Model Number:311135
Frequency700-800 MHz5.2 dB
824-894 MHz4.4 dB
880-960 MHz4.2 dB
1710-1880 MHz10.1 dB
1850-1990 MHz10.6 dB
2110-2170 MHz8.2 dB
Impedance50 ohms
Maximum Power50 watts
PolarizationVertical
ConnectorsN-Female
Dimensions8.27 x 7.09 x 1.73 inches 21 x 18 x 4.39 cm
VSWR1.5:1
Beamwidth Horizontal Plane70°/60°
Beamwidth Vertical Plane50°/45°
Ground PlaneBuilt-in Ground Plane
Price$ 84.99

Review Snapshot

4.54
(13)

Ratings Distribution

  • 1 Star: 1
  • 2 Stars: 0
  • 3 Stars: 0
  • 4 Stars: 2
  • 5 Stars: 10

Most Liked Positive Review

5

Worth the money!

I have a 1200 square ft metal building used for a shop and had NO cell service within. Even outside I have only 2 bars on average. After adding this booster I get 4 bars LTE inside! Should have done this long ago, well worth the money.

Most Liked Negative Review

1

I returned mine.

It didn't perform as I thought it should. Done , I didn't like it.


5

We are now getting 3 or 4 bars on our phones!!

We were having to go out into the yard to get a signal. Now we can use our phones inside the house! Love our Weboost!!

Bottom Line Yes, I would recommend to a friend

Was this review helpful to you? Yes: 1 No: 0

Submitted 3 years ago

By MeeMee

From Undisclosed

Verified Buyer

5

Great Booster

I bought mine about 2 months ago and I love it. It helps me get a great signal when I had none before the booster and I am glad I purchased it.

Bottom Line Yes, I would recommend to a friend

Was this review helpful to you? Yes: 0 No: 0

Submitted 3 years ago

By jdriver250

From Meridian, MS, USA

Verified Buyer

4

Works great

We upgraded from the older model to this one and love it

Bottom Line No, I would not recommend to a friend

Was this review helpful to you? Yes: 1 No: 0

Submitted 3 years ago

By Ulrich12

From Kingsburg, Ca

Verified Buyer

5

Worth it's weight in gold.

Our house has a metal roof and very rarely had signal until we installed this. Now we've got 4G in our house. Don't wast your money buying something that is (just enough). Spend the money up front and go big. It will save you lots of money in the long run. Trust me.

Bottom Line Yes, I would recommend to a friend

Was this review helpful to you? Yes: 0 No: 0

Submitted 4 years ago

By Koest27

From Sandpoint, ID, USA

Verified Buyer

1

I returned mine.

It didn't perform as I thought it should. Done , I didn't like it.

Bottom Line Yes, I would recommend to a friend

Was this review helpful to you? Yes: 0 No: 1

Submitted 4 years ago

By Kimber45

From Rockwall, TX

Verified Buyer

5

No more dropped calls

Went from spotty service to 3 to 5 bars throughout the house.

Bottom Line Yes, I would recommend to a friend

Was this review helpful to you? Yes: 0 No: 1

Submitted 4 years ago

By Kyle

From Upstate, NY

Verified Buyer

5

In side booster it made my coverage in more of thh

I bought this to expand my coverage gives more stable coverage

Bottom Line Yes, I would recommend to a friend

Was this review helpful to you? Yes: 0 No: 0

Submitted 4 years ago

By Yankeedime

From Elkhorn City, KY, USA

Verified Buyer

5

Worth the money!

I have a 1200 square ft metal building used for a shop and had NO cell service within. Even outside I have only 2 bars on average. After adding this booster I get 4 bars LTE inside! Should have done this long ago, well worth the money.

Bottom Line Yes, I would recommend to a friend

Was this review helpful to you? Yes: 3 No: 0

Submitted 4 years ago

By Rev 65

From Batesville, MS, USA

Verified Buyer

4

Easy to setup!

I bought this so that I could get single in the basement. My basement is an open floor plan with one room and covers about 800-900 sqft. The setup of this was completely easy. I definitely enjoy the ability to receive and make calls from the basement.

Bottom Line Yes, I would recommend to a friend

Was this review helpful to you? Yes: 0 No: 0

Submitted 4 years ago

By Buddy

From Rockville, MD, USA

Verified Buyer

5

Easy Installation!!!

Bought this for my husband's shop/studio. Only had cell service when big roll up doors were open. Installed weBoost easily! Now have full signal everywhere in the building!!

Bottom Line Yes, I would recommend to a friend

Was this review helpful to you? Yes: 0 No: 0

Submitted 4 years ago

By netter63

From Ionia, MO, USA

Verified Buyer

Q&A

Showing 10 out of 13 Questions

Asked by Tommy a year ago

Question: Do you need a booster to use this antennae?

Answer: Not necessarily. If you have a cellular router or anything cellular that is between the bands that are specified in the manual, you should be able to use this antenna for those as well.

Was this question helpful to you? Yes: 0 No: 0


Asked by kimbadox 3 years ago

Question: Will this antenna work with the drive 4G-M? I just mounted the device in my RV and learned the antenna it came with only covers up to 4ft.

Answer: Thank you for reaching out! This antenna will work, but would need some adapters and cabling to go in between it and the booster. Please reach out to us for additional assistance: http://support.weboost.com/hc/en-us/requests/new

Was this question helpful to you? Yes: 0 No: 0


Asked by Natedog 3 years ago

Question: I understand that the antenna is listed as "wall mount", but ceiling mount fits my installation better. What does that do to my signal coverage area with this orientation?

Answer: Thank you for your question. This antenna can be installed on a ceiling and will have a pattern similar to the beams of a flashlight. This orientation is generally recommended for ceiling heights higher than 20 feet. For additional questions, you can reach us here: http://support.weboost.com/hc/en-us/requests/new

Was this question helpful to you? Yes: 0 No: 0


Asked by John1963 4 years ago

Question: What is the difference in function between the wall mount and ceiling mount?

Answer: Thank you for your question. The main difference between antennas is all about the layout of the building being covered. If the ceilings are higher, and the floor plan is open, you might mount the internal antenna on a ceiling to cover more of the floor plan that way. If there are only certain rooms you are looking to cover, or the ceilings are not very high, a wall mount might work best. To determine which might best fit your application, we recommend reaching out to us directly. You can reach us here: http://support.weboost.com/hc/en-us/requests/new Or by phone at 866-294-1660.

Was this question helpful to you? Yes: 0 No: 0


Asked by Bygmyke 4 years ago

Question: If used with the proper connectors, will this work with the Weboost Drive 4G-X? If so, how would it compare to using the 301152? I already have RG-11 coax cable.

Answer: This antenna would work with the Drive 4G-X, and would be an upgrade compared to the candy bar antenna that you have. However, we recommend the 304447. This kit includes the 311135 antenna, with 20' of cable which has the appropriate adapters for both booster, and panel antenna. This will have the FCC approved cable length, and antenna type.

Was this question helpful to you? Yes: 1 No: 0


Asked by rwsusa 4 years ago

Question: Can this connect to the 470101 booster? Do i need an adapter or special cable? Do you sell those?

Answer: You can use this antenna with the Home 4G booster. However, we do have a kit which has all that you would need to attach a panel antenna to the system. You can find this kit here: https://store.weboost.com/products/ag-dt-panel-antenna-upgrade-70

Was this question helpful to you? Yes: 0 No: 0


Asked by Oscardigi 4 years ago

Question: Will this antenna boost the interior range over the antenna which comes with the 4G-X?  By how much?  What is its range and the range for the interior antenna which comes with the 4G-X?

Answer: The 311135 antenna is the antenna included in the Connect 4G-X kit. The coverage range inside will depend on what the outside signal is like. The Connect 4G-X can cover up to 7500 square feet, with adequate signal. You are welcome to reach out to us, where we can help you take signal readings outside the building you are looking to cover, to help determine how much coverage you can expect. You can reach us here: http://support.weboost.com/hc/en-us/requests/new

Was this question helpful to you? Yes: 1 No: 0


Asked by dalejr88 4 years ago

Question: Can more than one wall mount antenna be connected to Weboost Connect 4G-X?

Answer: Thank you for reaching out to us! The Connect 4G-X does have the capability to be split to multiple indoor antennas. There are signal strength requirements we like to follow, to ensure that signal is boosted adequately to each indoor antenna. If the outside signal is very weak, we do not recommend splitting to additional indoor antennas. We would like to work with you directly to help determine if splitting the signal will be beneficial for your application. We can also provide you with a parts list if applicable. You can reach us here: http://support.weboost.com/hc/en-us/requests/new

Was this question helpful to you? Yes: 0 No: 0


Asked by Repeater Rick 4 years ago

Question: Can this antenna (311135) be wall-mounted near the ceiling, upside down (that is, with the coax feed at the top) or will that not direct enough energy into the lower areas of the room?

Answer: Thank you for your question. Mounting it like that would still give you coverage. One way that we recommend mounting the antenna would be placing the antenna on the ceiling pointing down into the home. If you have any other questions you can reach out to us here: http://support.weboost.com/hc/en-us/requests/new

Was this question helpful to you? Yes: 0 No: 0


Asked by JennaRose 4 years ago

Question: which indoor antenna can I upgrade to with a Wilson DT4G SmartTechIII?

Answer: For the DT 4G kit internal antenna upgrade, we recommend - 304447. This antenna can be found through many of our online re-sellers.

Was this question helpful to you? Yes: 0 No: 0


BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.

Warning.

E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards
