4G NMO Antenna | 314405

email me this page
Email me this page

Works on every network, on any carrier.

Product Description

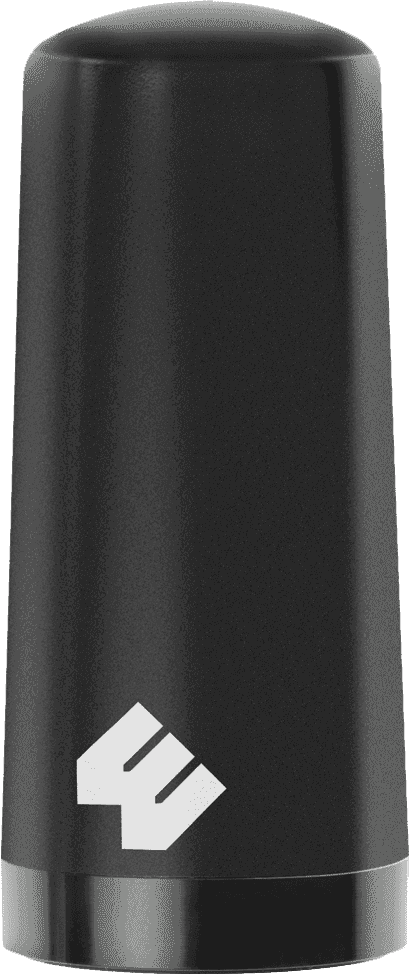

3.3 In. tall, high-gain omni-directional 4G NMO permanent mount vehicular cellular antenna. Installs on NMO antenna mount (required, not included) 901150 and 905814. Operational on 698-960 and 1710-2700 MHz cellular frequencies. Commonly used with the weBoost Drive Reach Fleet booster kit (470254).
Warning

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Features
  • Works on all worldwide cellular bands for voice and 4G data: LTE/CDMA/GSM/UMTS/AWS
  • High-gain omni-directional antenna
  • 698 – 960 & 1710 - 2700 MHz cellular frequencies
  • Installs on any NMO antenna mount (required, not included)

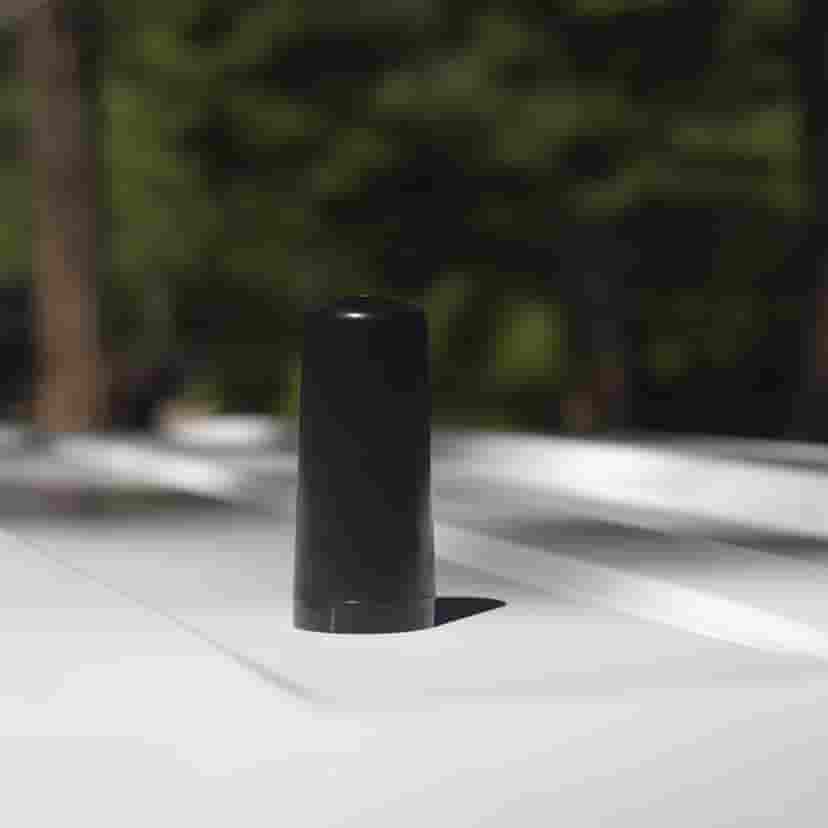

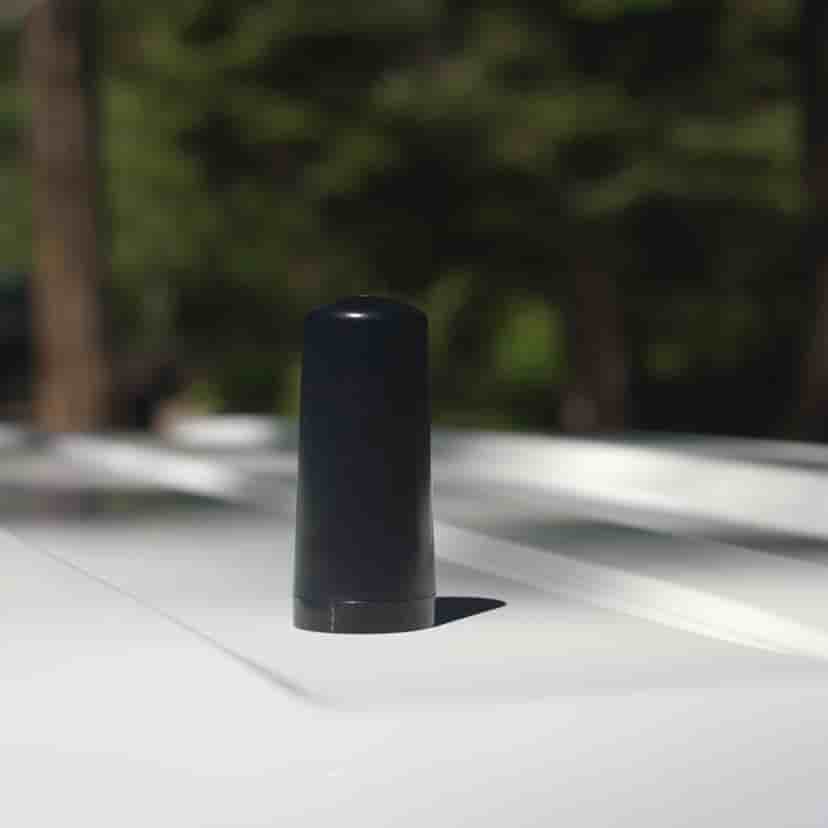

  • Low-profile: Perfect for permanent car, truck, RV installation
  • Connects to cell phone signal boosters and cell modems
  • Works on both indoor/outdoor applications
  • Ideal for M2M installations

Specs

Model Number:314405
Frequency700-800 MHz3.2 dB
824-894 MHz3.1 dB
880-960 MHz3.1 dB
1710-1880 MHz1.9 dB
1850-1990 MHz1.9 dB
2110-2170 MHz0.9 dB
Impedance50 Ohm
Maximum Power100 watts
PolarizationVertical
ConnectorsNMO
Dimensions3.3 x 1.44
Price$ 49.99

Resources

Review Snapshot

Ratings Distribution


    Q&A

    Showing 10 out of 6 Questions

    Asked by chad 8 months ago

    Question: How would this compare signal wise to 304415? I have a tall truck, and would plan to mount this center of the alum canopy, but worry about damage from branches and low objects, where I see that 304415 has a spring option.

    Answer: Thank you for your question! I would go with the 304415 of you're going to be over landing or in areas where trees and branches may be a problem. The OTR antenna doesn't need to be permanently mounted as well. Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Jarrod 8 months ago

    Question: Can this be mounted to a fiberglass truck bed cap or does it need to mounted through a metal roof to act as a ground plane?

    Answer: Thank you for your question! A metal roof is needed unless you can fashion a ground plane yourself on the fiberglass since the signal needs to bound back into the antenna. Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Jesse 9 months ago

    Question: Does this require the use of a ground plane?

    Answer: Thank you for your question! Yes, since it's drilled into the roof of a vehicle it still requires a ground plane for the signal to bounce into the antenna to receive signal. Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Will 9 months ago

    Question: Can I just carry this in a my work bag an still get use out of it in my works break room?

    Answer: Thank you for your question! No, our amplifiers or antennas do not work for that purpose. You must be connected to an amplifier to receive any benefit from this antenna. This also must be attached to a roof of a vehicle as it's an NMO antenna meaning that it's mounted through a hole in the roof and then attached inside through coax cable. Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Jake 9 months ago

    Question: Will this provide better signal strength than the "Mini Magnetic Antenna" that comes with the 4G-X?

    Answer: Thank you for your question! Yes, this antenna does have a little higher gains on the lower frequencies, but loses a decibel on the 1900 mhz. That's the 3G voice and 4G data for some carriers. It's not a lot to notice much difference though. Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Lee a year ago

    Question: While the 4g nmo antenna work on any weboost car kit

    Answer: Thank you for your question! It should be able to as long as the connector is SMA and the corresponding amplifier is the same as well. Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

    Was this question helpful to you? Yes: 0 No: 0


    BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.

    Warning.

    E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards
