Drive X RV Outside Antenna | 311224

email me this page
Email me this page

Works on every network, on any carrier.

Product Description

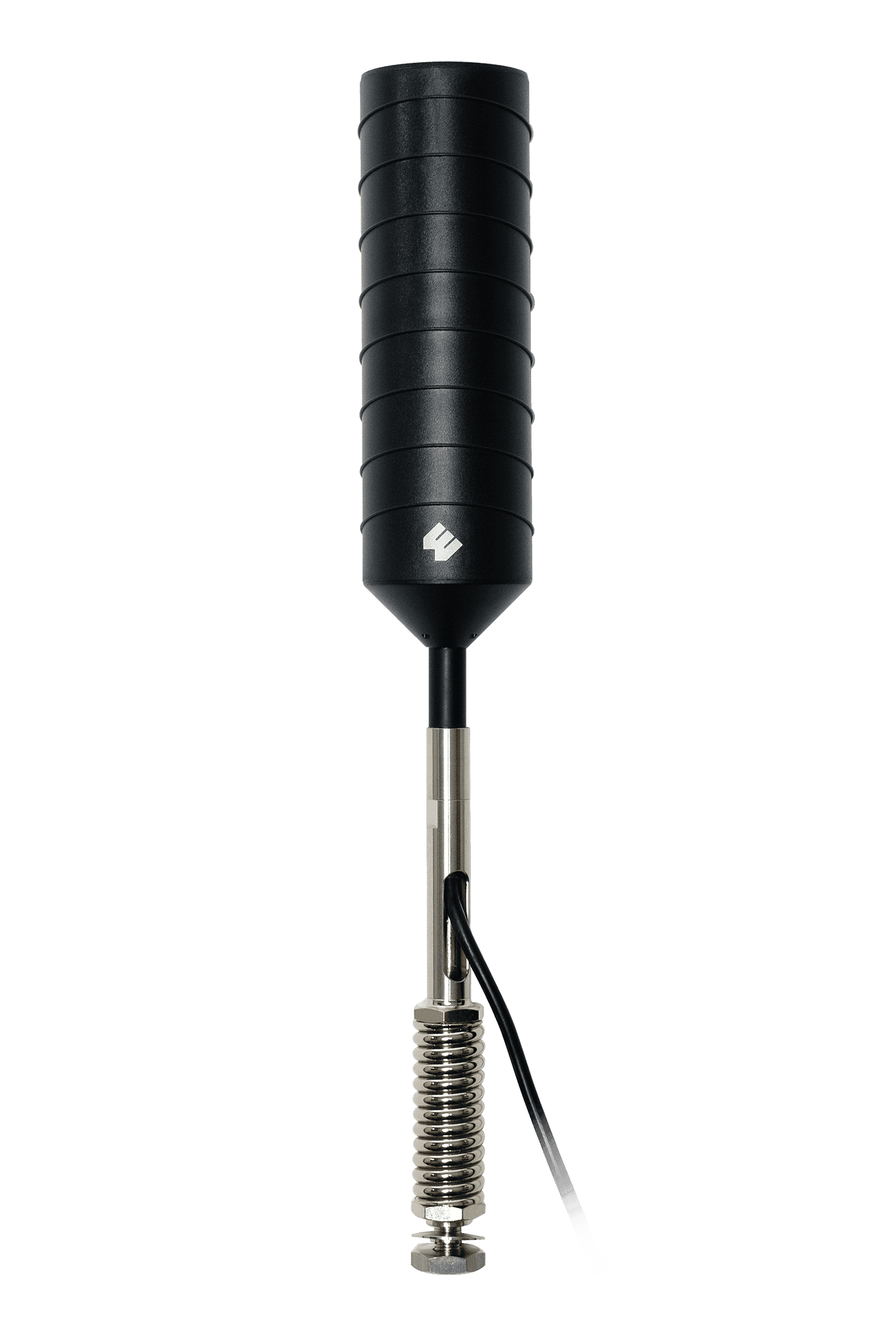

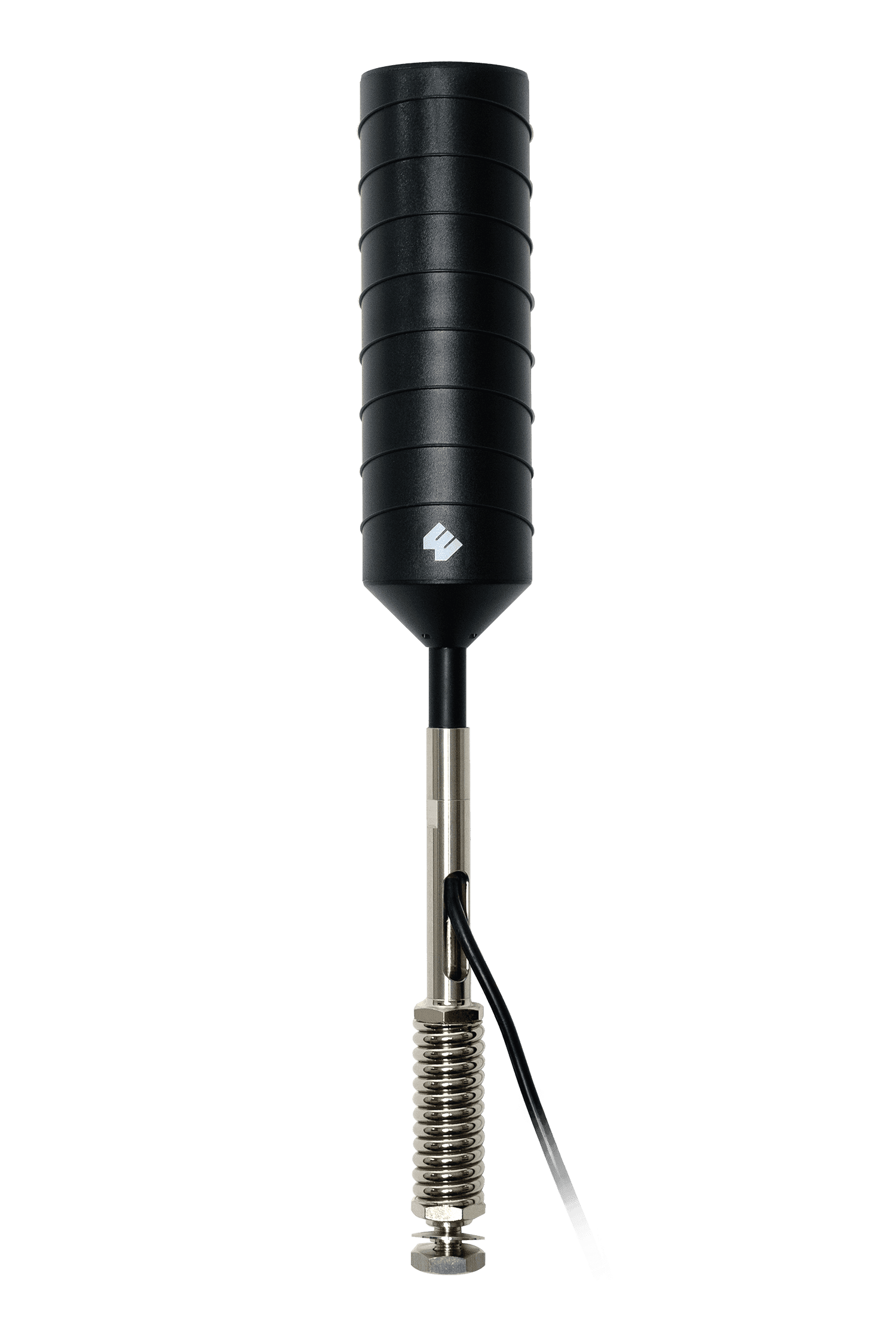

The Drive X RV Outside Antenna is an omni-directional, wideband antenna designed for use with RVs and weBoost in-vehicle boosters. Its versatile, modular design allows it to expand from 9.5” to 28.5” in height; well above any RV cab’s obstructions to optimize performance.

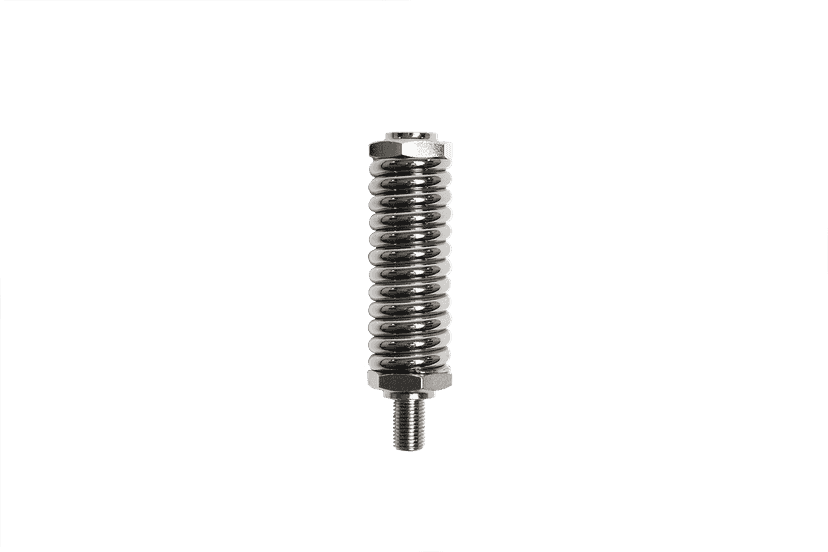

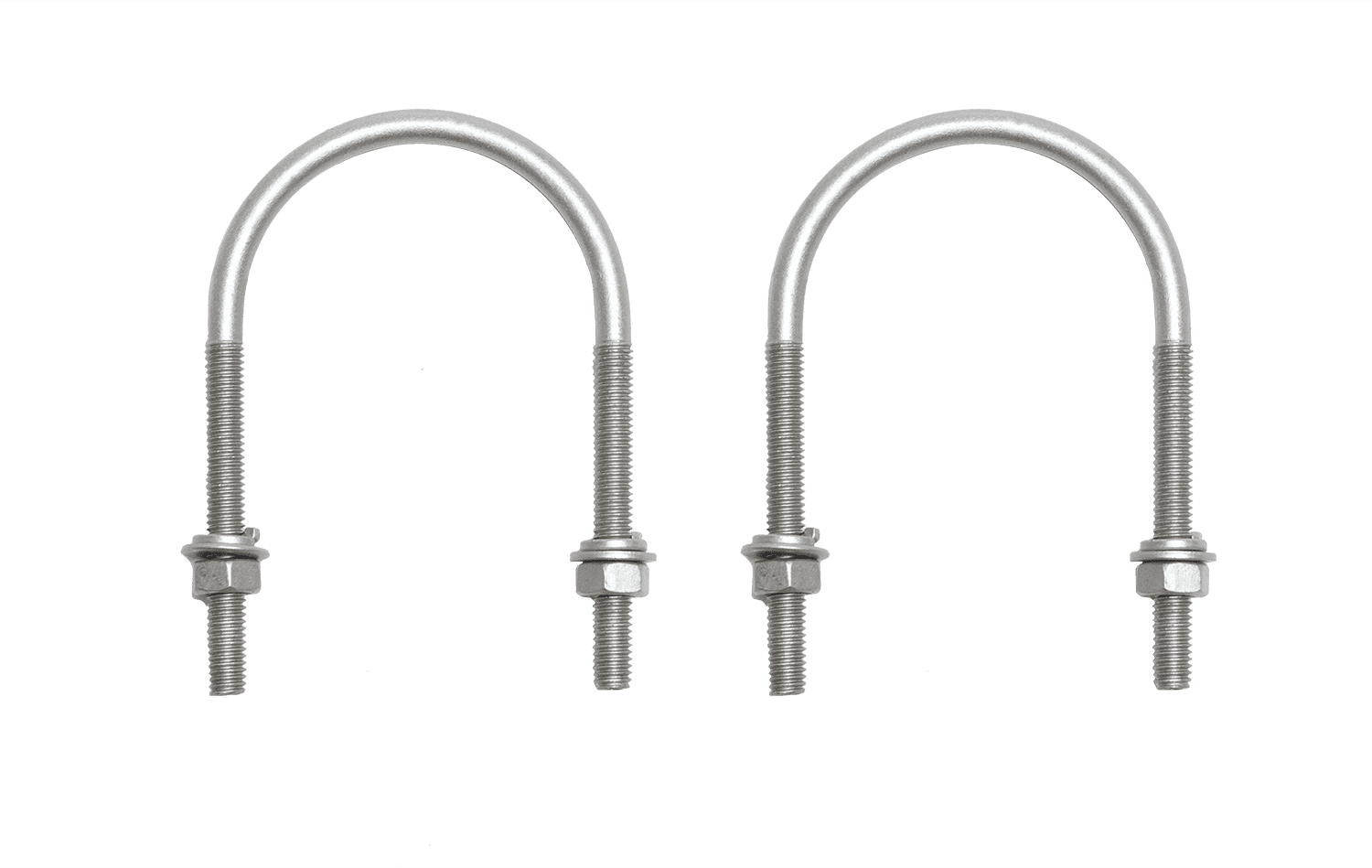

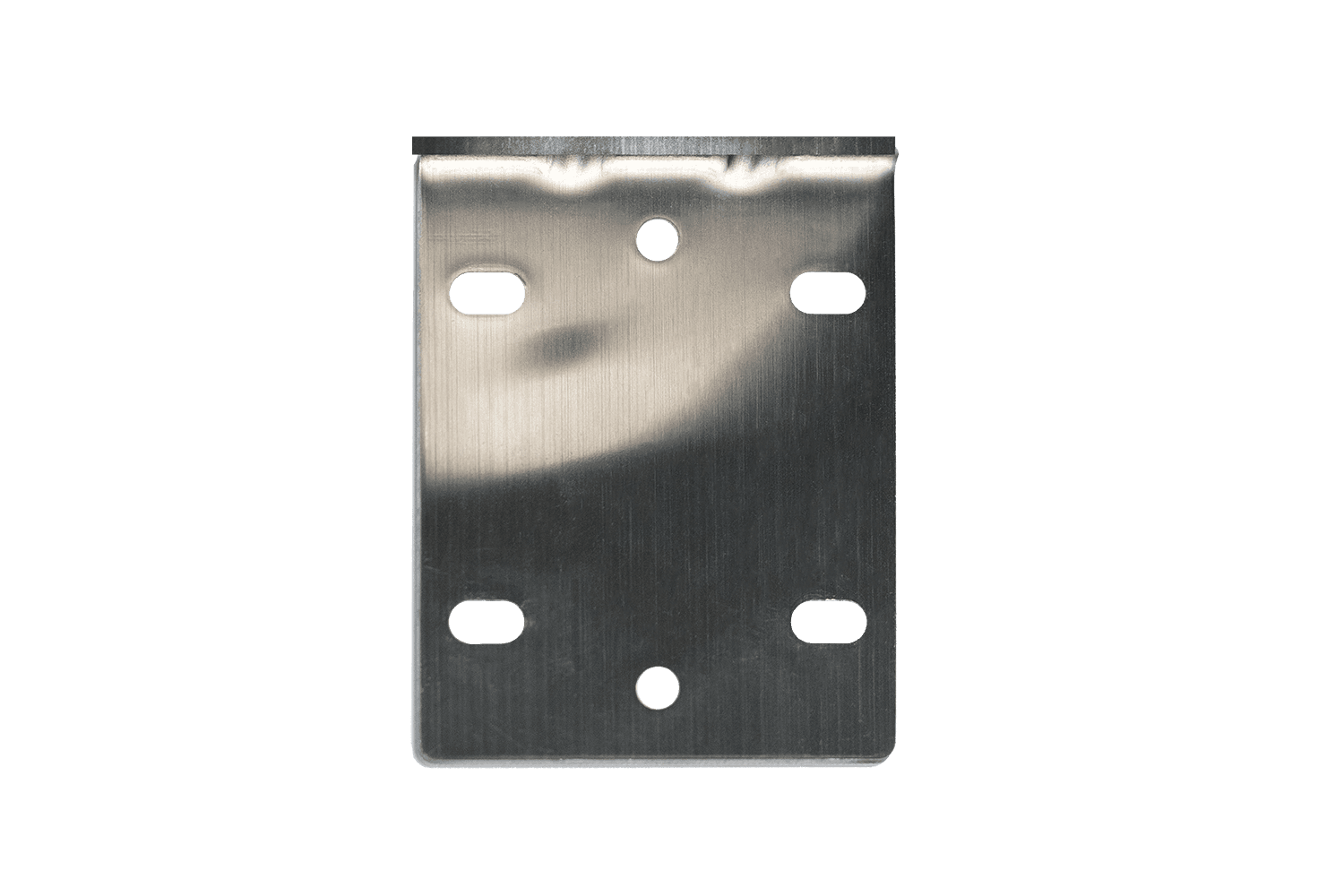

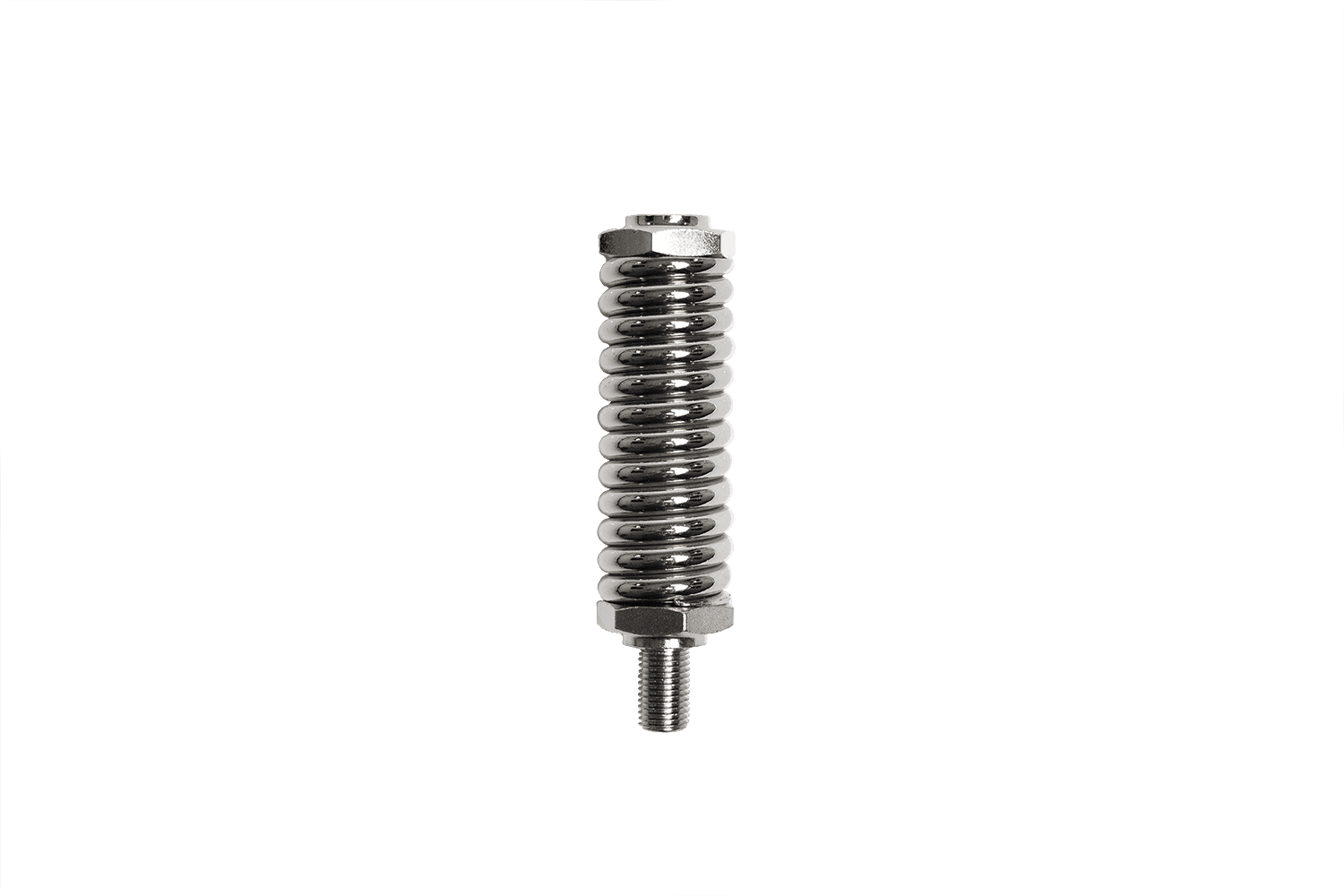

With its side-exit adapter and hardware, Drive X RV Outside Antenna fits CB-antenna mounts and RV ladders. The optional spring base helps protect against high winds and tree branches.

The Drive X RV Outside Antenna comes equipped with a 25-ft. length of RG-6 cable to easily reach inside even the largest-sized RVs to wherever the booster is installed.

For compatibility with the Drive Reach Cell Signal Booster Kit (470154), this antenna requires an SMA Female to SMB Adapter (970019).

Warning

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specs

Model Number:311224
Frequency689-960 MHz
1710-2700 MHz
Impedance50 Ohm
Maximum Input Power50 watts
Antenna TypeOmni Directional
ConnectorsSMA Female
Dimensions12 x 2.25 in.
Weight0.75 lbs
Price$ 109.99

Resources

Review Snapshot

Ratings Distribution


    Q&A

    Showing 10 out of 5 Questions

    Asked by Clharris 2 days ago

    Question: Does this only work for gathering cell service or can it also be used for say CB radios or HAM radios?

    Answer: This will only gather cellular signals. Unfortunately, this antenna can not be used for CB or HAM radios. If you have any other questions that need to be addressed, please feel free to reach back to us at 866-294-1660 or email our online support at [email protected] Thank you and have a great day!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Timbo 12 days ago

    Question: What is the dimension of the thread interface?

    Answer: In order for us to properly assist you, we would need to know the reason for needing the dimension of the thread interface for the SMA Male. Please feel free contact us at [email protected] Thank you!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Bill 2 months ago

    Question: Will the Drive X RV X Outside antenna base be compatible with a marine antenna mount that has 1" male threads? Thinking I may need an adapter... have you seen this done. The marine base would allow me to lay the antenna horizontal on my RV roof if needed (not while using the booster).

    Answer: Thank you for your question! Unfortunately, the OTR antenna is not compatible with the marine mount. We currently do not have an adapter that would allow you to mount the OTR antenna on the marine mount. You may be able to find a third party mount that will allow you to lower the antenna when not in use. If you have any other questions that need to be addressed, please feel free to reach back to us at 866-294-1660 or email our online support at [email protected] Thank you and have a great day!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Logger 2 months ago

    Question: Will this work with and improve signal with my drive 4g-x?

    Answer: The 311224 offers about the same performance as the mini magnetic mount antenna that comes with the Drive 4G-X. However, the 311224's ability to extend higher gives it the advantage of reaching a stronger signal for a greater increase inside. If you have any other questions that need to be addressed, please feel free to reach back to us at 866-294-1660 or email our online support at [email protected] Thank you and have a great day!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Rod 3 months ago

    Question: I have a WeBoost with a directional external antenna. Will this omnidirectional external antenna work?

    Answer: Thank you for your question! If your weBoost system comes with a directional antenna, it would be best to use a building omni directional antenna to replace it. Depending on the system that you have, you would either get the 50 ohm (304424) or 75 ohm (304421) omni directional antenna. If you have any other questions that need to be addressed, please feel free to reach back out to us at 866-294-1660 or email us at [email protected] Thank you and have a great day!

    Was this question helpful to you? Yes: 0 No: 0


    BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.

    Warning.

    E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards
