Marine Mount Antenna (SMA-Male) | 311130

Discontinued
email me this page
Email me this page

Works on every network, on any carrier.

Product Description

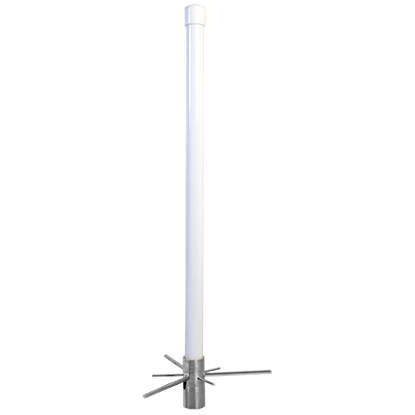

Omni-Directional 21 inch Antenna For Marine Cell Phone Signal Boosters with 7 inch RG-58 cable with SMA Male Connector. 50 Ohm, Built-in Chrome-Plated Radial Ground Plane. View our selection of marine signal boosters. Commonly used with the Drive 4G-M

Warning

Warning: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specs

Model Number:311130
Price$ 119.99

Review Snapshot

Ratings Distribution


    Q&A

    Showing 10 out of 11 Questions

    Asked by AJlynch 3 years ago

    Question: Where on the site is the SDS for the thread-locker liquid provided? Is this equivalent to Loctite 242 (Loctite Blue)?

    Answer: Thank you for reaching out! We would like to work with you directly to help answer your questions. Please reach out to us here: http://support.weboost.com/hc/en-us/requests/new

    Was this question helpful to you? Yes: 0 No: 1


    Asked by Curious Boater 3 years ago

    Question: I'm curious if this will fit an existing mount on the side of my boat.  How far out do the horizontal antenna parts of this antenna come out from the center of the antenna?

    Answer: Thank you for reaching out to us. The longest radials on this antenna are 3 1/2". If you have any questions feel free to reach out to us here: http://support.weboost.com/hc/en-us/requests/new

    Was this question helpful to you? Yes: 0 No: 0


    Asked by MEAN DEAN 4 years ago

    Question: BEST FOR BOAT VERY WEAK SIGNAL

    Answer: Thank you for reaching out to us. Any of our mobile products coupled with the marine antenna will be ideal for a marine application. If you have any questions feel free to reach out to us here: http://support.weboost.com/hc/en-us/requests/new

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Been 4 years ago

    Question: Is this antenna an open or short circuit? I'm trying to test and get no sound from my tester. On another Wilson antenna that is not omni directional I get a sound, indicating it is a short circuit.

    Answer: Thank you for your question. This antenna will read open from the center pin to the connector threads. For additional questions, you can reach out to us here: http://support.weboost.com/hc/en-us/requests/new

    Was this question helpful to you? Yes: 0 No: 1


    Asked by knugen 4 years ago

    Question: Is this 50 or 75 ohm?

    Answer: Thank you for your question! The Marine Antenna (311130), is 50 ohm.

    Was this question helpful to you? Yes: 0 No: 0


    Asked by TomB 4 years ago

    Question: Can the marine antenna be used with the RV 4G? Would it need the F female to N Male adapter?

    Answer: Unfortunately, the Marine antenna is not an approved antenna by the FCC. However, on Page 9 of the manual, you can find many different approved options: https://www.weboost.com/us/installguide/rv4G/rv4G_ig.pdf We recommend reaching out to us, so we can go over your specific situation to help determine which outdoor antenna might be the best option for your setup. You can reach us through our online support center here: http://support.weboost.com/hc/en-us/requests/new

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Garu 4 years ago

    Question: Hi, Is this compatible and will work with Signal 4G?  If so, does it comes with required connectors to hook it up with Signal 4G?

    Answer: The 311130- Marine antenna would require extra cable added on to the unit. The antenna only comes with a smaller tail of coax. In order to connect the marine antenna to the Signal 4G, you can use - 955811 (10 ft RG-58 Cable) that has the connectors necessary to connect to booster and antenna. If you need a length longer than the 10 ft, we recommend submitting a help ticket to discuss connectors, and loss. You can submit a ticket here: http://support.weboost.com/hc/en-us/requests/new The 955811 can be found through many of our online re-sellers, by typing in the part number to your internet search box.

    Was this question helpful to you? Yes: 0 No: 0


    Asked by tow boat 4 years ago

    Question: will this work with a weBoost Connect 4G Cell Phone Booster Kit

    Answer: The Marine Mount antenna is not certified to be used with the Connect 4G. You can view the approved antennas on pages 8 and 9 here: https://www.weboost.com/us/installguide/connect4G/connect4G_ig.pdf You can use the omni building antenna, but it is not great with the 4G frequencies. We recommend the Wide Band Directional that comes in the kit.

    Was this question helpful to you? Yes: 0 No: 0


    Asked by cob631 4 years ago

    Question: how long is the antenna

    Answer: From tip to base of the Marine Antenna is 20.75". If you put the antenna on the Marine Mount (901119) it is 24.5" from the top of the antenna to the bottom of the mount. You can see the mount here: https://store.weboost.com/products/marine-antenna-mount

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Darren 4 years ago

    Question: Does this work with the weboost drive 4g-M?

    Answer: The 311130- Marine antenna will work with the Drive 4G-M. Where applicable, we recommend using the 4'' magnetic mount that the kit comes with. However, in Marine applications, this antenna may be paired with the Drive 4G-M.

    Was this question helpful to you? Yes: 0 No: 0


    BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.

    Warning.

    E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards
