Wideband Directional Antenna 50 Ohm 617-2700 MHz

311233

Previous

Next

• 1
• 2

$89.99

ADD TO CART

Select 50 or 75 ohm to add to cart

Works with every network, including 5g, on any carrier.

All-weather, Band 71-compatible outside antenna

Engineered for use with the WilsonPro Pro 710i industrial-grade, cell signal

amplifier, the Wideband Directional Antenna 50 Ohm 617-2700 MHz is

lauded for its all-weather construction, high efficiency, and compact design.



Waterproof and UV stable, it works on low-frequency 5G (Band 71), 617-960

and 1710-2700 MHz, and all LTE/CDMA/GSM/UMTS/AWS worldwide cellular

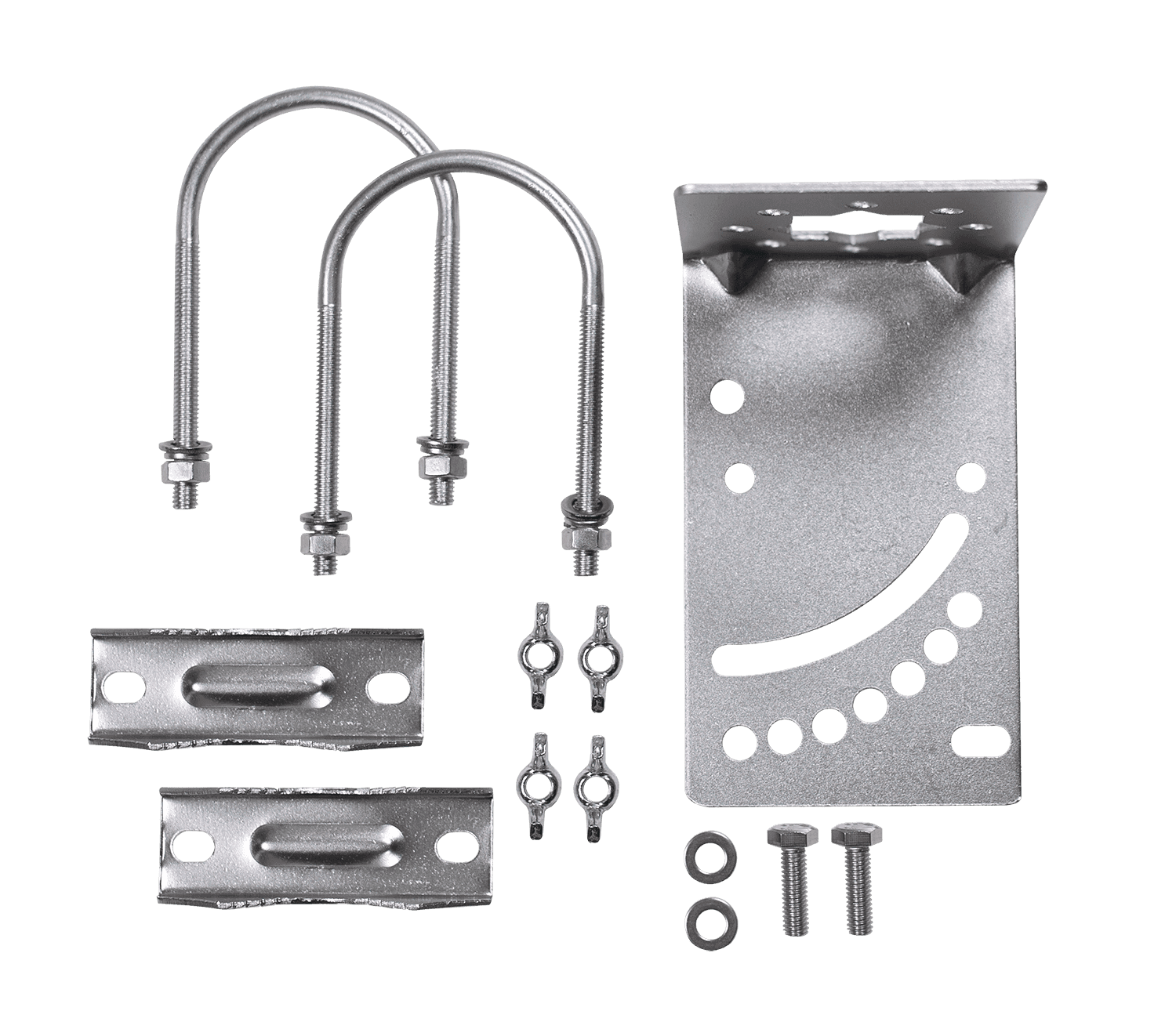

bands for voice and data. Designed to fit 1.5”-2” pipe or mast on a building’s

exterior, the tilt-swivel bracket used with the Wideband Directional Antenna

50 Ohm is easily adjusted to point in the direction of nearby Band 71 towers.

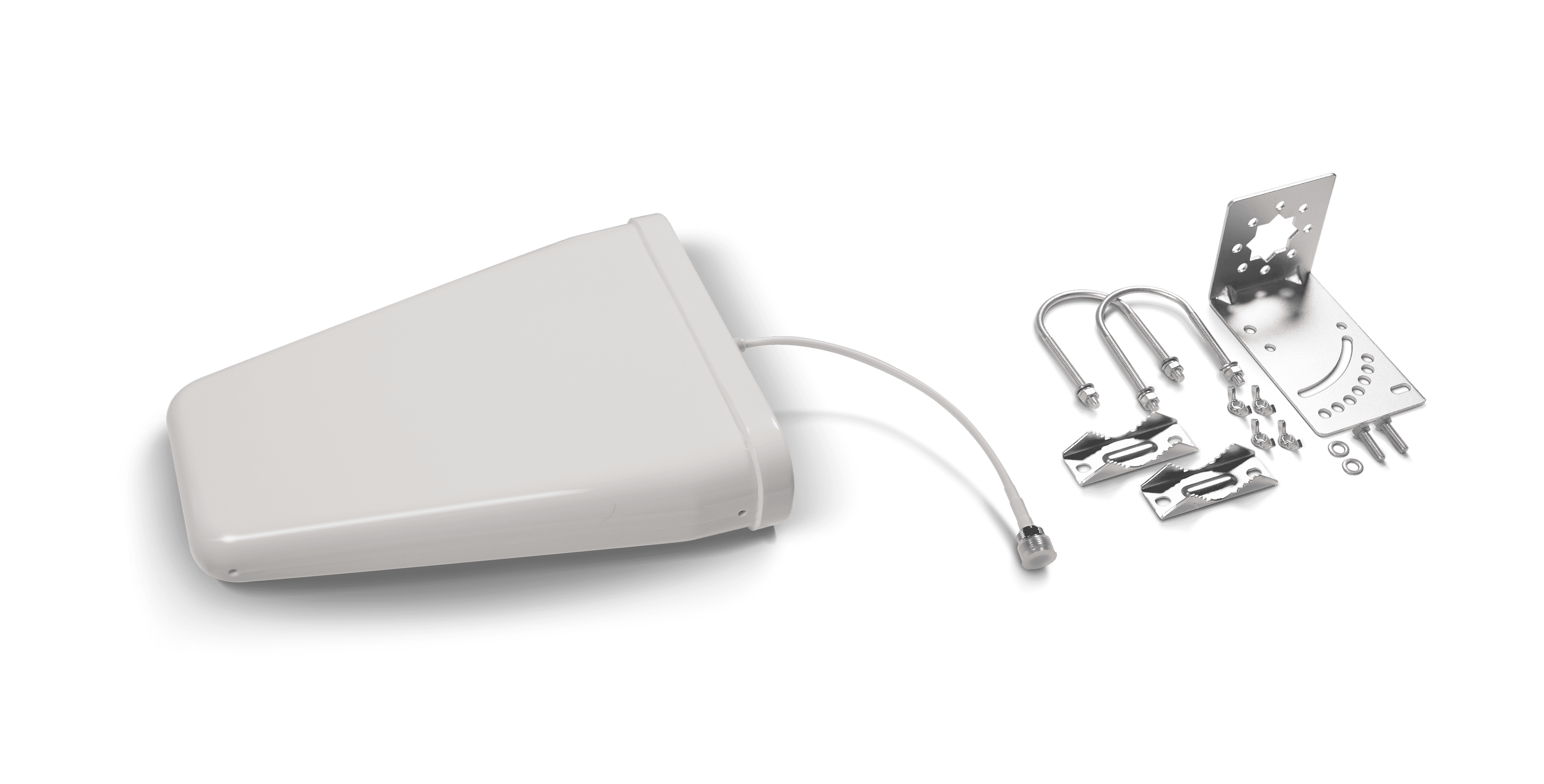

The Wideband Directional Antenna 50 Ohm 617-2700 MHz also comes with an

N-Female connector, installation hardware, and 2-year manufacturer’s warranty.

Start enjoying stronger cell signal today. Qualifying members have access to low monthly payments starting at 0% APR.

See Financing Options ❯

Specs

Wideband Directional Antenna 50 Ohm 617-2700 MHzModel #: 311233

• Frequency

  617-698 MHz

  698-806 MHz

  806-960 MHz

  1710-1880 MHz

  1850-1990 MHz

  1910-2170 MHz

  2300-2700 MHz

• Peak Gain

  4.8 dBi

  6.3 dBi

  8 dBi

  8.3 dBi

  7.6 dBi

  8.0 dBi

  7.8 dBi

• Impedance

  50 Ohm

• Max Power

  20 W

• Connectors

  N - Female

• Dimensions

  11.5 x 8.2 x 2.5 in.

• Weight

  1.76 lbs.

• Polarization

  Vertical

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.

WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards.
