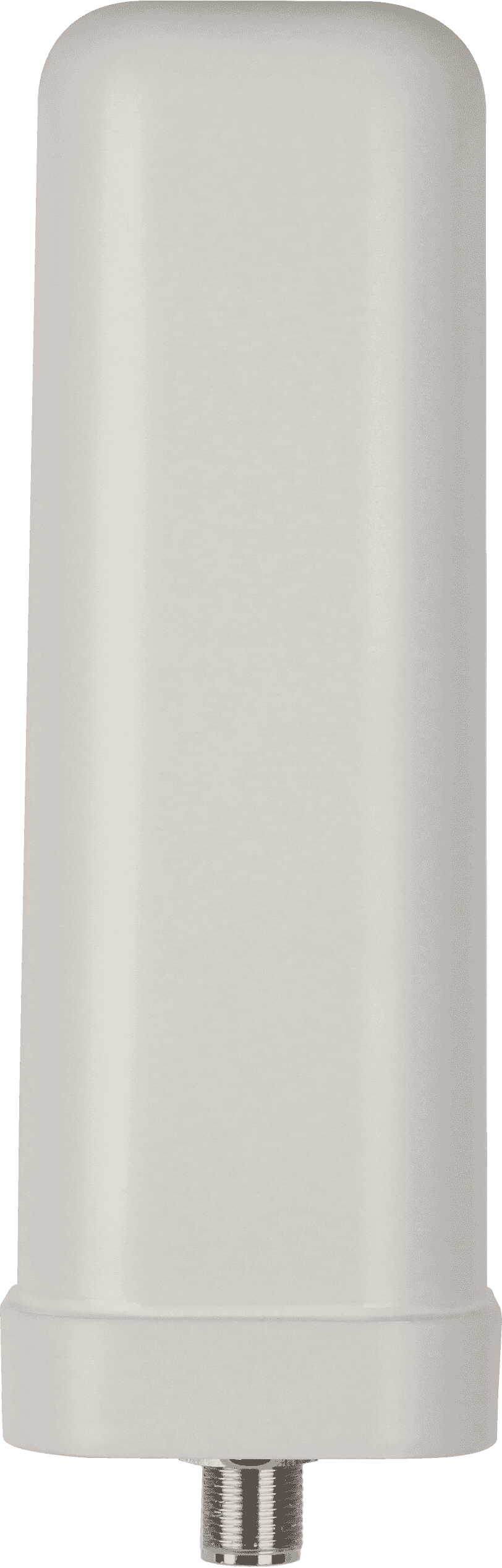

4G Omni Building Antenna (N-Female) | 304424

email me this page
Email me this page

Works on every network, on any carrier.

Product Description

Boost 698 - 960 & 1710 - 2700 MHz cellular frequencies.  50 Ohm 7.5 Inch 4G Omni Building Antenna for Cell Phone Signal Boosters with N-Female Connector.  Includes Multi-mount Bracket for mast or wall. Outdoor rated waterproof.  2 year warranty.

Warning

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specs

Model Number:304424
Frequency700-800 MHz2 dB
824-894 MHz2 dB
880-960 MHz2 dB
1710-1880 MHz4 dB
1850-1990 MHz4 dB
2110-2170 MHz4 dB
Impedance50 Ohms
Maximum Power100 watts
PolarizationVertical
ConnectorsN-Female
Mount TypeMounting pole or wall mount, 1.5-2.0 in / 38-52 mm
Dimensions7.5 x 2.6 x 2.6 in / 190 x 66 x 66 mm
Weight0.77 lbs / 0.35 kg
Rated wind velocity (mph/kph)130/210
Radome MaterialUV Resistant PVC
Price$ 79.99

Resources

Review Snapshot

Ratings Distribution


    Q&A

    Showing 10 out of 4 Questions

    Asked by Sammy 5 months ago

    Question: Hello, will this antenna work with the WeBoost EQO?

    Answer: Thank you for your question! As long as you have the correct adapters and coax then it's possible. Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by High sierra 7 months ago

    Question: will this antenna work with 470101 home 4g?

    Answer: Thank you for your question! It does but I would get the 75 ohm version since that connects directly to the coax cable it comes with. Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Bigjim 2 years ago

    Question: Hi folks, I have this on my motorhome mounted on an air conditioner. I bumped it when shoveling snow before leaving the frozen North for FL. I broke the seal and forgot to re-seal it before leaving. The cover is gone. Is there a chance of buying only the outer covet? It works flawlessly with a Ziploc bag and tape holding it, just looks bad and has to be replaced at each stop.

    Answer: Thank you for your question! Please give us a call at 866-294-1660 or contact our online support at: [email protected] so that we can address this issue with you personally. We may be able to help you out! Hope to hear from you soon! Thank you!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by Jmathews 3 years ago

    Question: How does this work? Plug into the wall?

    Answer: Thank you for your question. The 304424 will need to plug into an approved cellular device. This is most commonly used with a cellular booster, or router device. We would like to work with you to see if we can help make a recommendation for your situation. You can reach us here: http://support.weboost.com/hc/en-us/requests/new

    Was this question helpful to you? Yes: 0 No: 0


    BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.

    Warning.

    E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards
