4G Omni Plus Building Antenna (F-Female) | 304423

email me this page
Email me this page

Works on every network, on any carrier.

Product Description

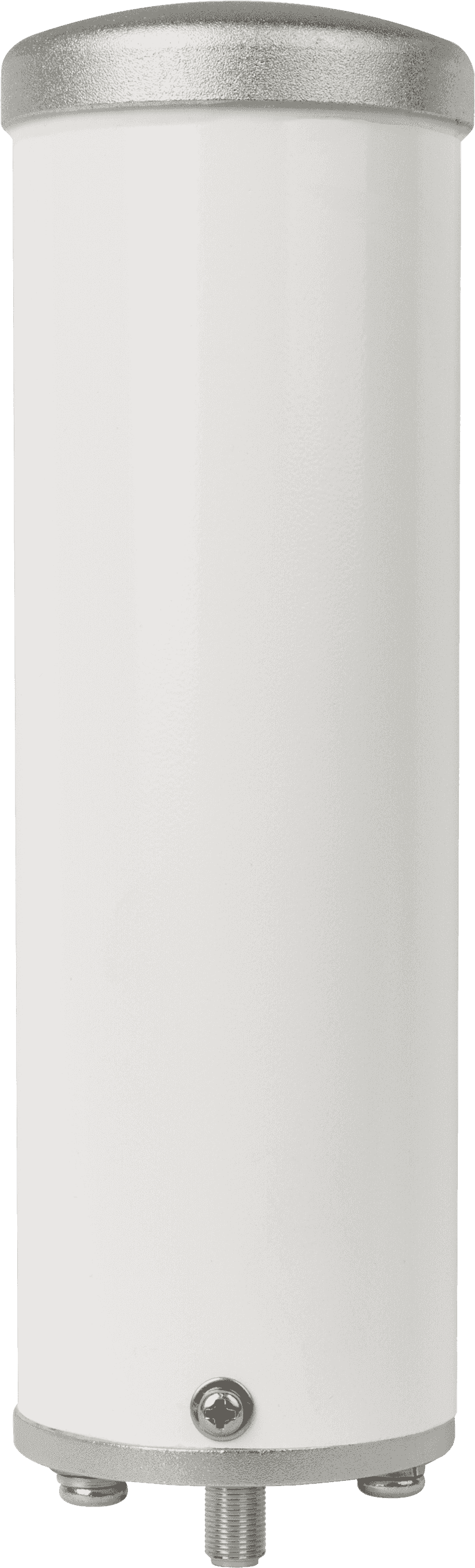

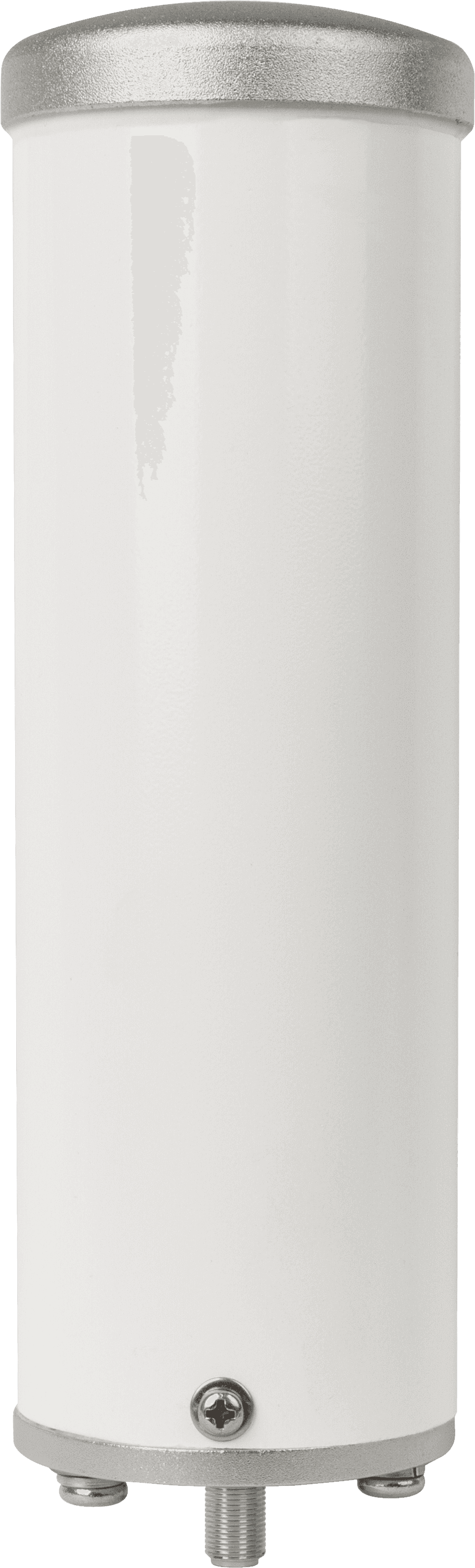

SKU 304423. 9.8 in. 4G Omni-Directional antenna, 75 Ohm, designed for pole or wall mount, F-Female connector, includes mounting hardware.
Warning

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specs

Model Number:304423
Frequency700-800 MHz2 dB
824-894 MHz2 dB
880-960 MHz2 dB
1710-1880 MHz5 dB
1850-1990 MHz5 dB
2110-2170 MHz5 dB
Impedance75 Ohms
Maximum Power100 watts
PolarizationVertical
ConnectorsF-Female
Mount TypeMounting pole or wall mount (in/mm), 1.5-2.0/38-52
Dimensions2.5 x 9.8/63 x 250
Weight1.9/0.85
Rated wind velocity (mph/kph)130/210
Radome MaterialUV Resistant PVC
Price$ 99.99

Review Snapshot

5
(1)

Ratings Distribution

  • 1 Star: 0
  • 2 Stars: 0
  • 3 Stars: 0
  • 4 Stars: 0
  • 5 Stars: 1

5

Cabin in the woods

Two bars outside 0 to 1 bar inside. Had to go out to the parking lot to make or receive a call or even text. Installed unit with an optional omni directional outdoor antenna, now we have 2 to 3 bars inside. No more dropped calls or dead batteries from phone searching for signal.

Bottom Line Yes, I would recommend to a friend

Was this review helpful to you? Yes: 18 No: 0

Submitted 3 years ago

By Leonard

From Hillsboro, OH, USA

Verified Buyer

Q&A

Showing 10 out of 5 Questions

Asked by Melissa 4 months ago

Question: Can I use this with the weboost 470101 instead of the directional antenna that came with it?

Answer: Thank you for your question! Yes, I believed I answered your question on the other question on the omni antenna. In short, yes it can be used. If there's any other questions or concerns, please let us know by calling our customer support at 866-294-1660 or our online support at [email protected] Thanks again!

Was this question helpful to you? Yes: 0 No: 0


Asked by Jerry 8 months ago

Question: Can the 304423 antenna be used outdoors?

Answer: Thank you for your question! Yes, it's rated to withstand all types of harsh environment even wind up to 60 mph. Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

Was this question helpful to you? Yes: 0 No: 0


Asked by Terry a year ago

Question: What are the downsides of this lower cost analog antenna compared to your higher priced antennas? Speed? 3G-4G? How is the signal brought inside, and how is it transmitted to my phone?

Answer: Mostly it comes down to the quality of materials used. The PRO version does have a little more gain but it's not enough to tell a huge difference. The signal is brought in in a 350 degree area, however it can only pick up signal in the immediate area where the outside antenna is located. It's transmitted to the phone through a cellular amplifier which then broadcasts that boosted signal inside your home or office. However the antennas themselves can be used for hotspots or cellular routers which have the same frequencies.

Was this question helpful to you? Yes: 0 No: 0


Asked by James Meehan a year ago

Question: I have a mountain home in North Carolina. Please look up Sapphire, NC. I purchased the Connect 4G-X | 471104. What is the best omni-directional antenna you recommend? What cable should I also buy to connect the antenna to the device?

Answer: The best omni directional can be found here: https://www.weboost.com/products/wilson-electronics-4g-omni-plus-building-antenna-50-ohm The cable that comes with the amplifier should fit perfectly. Thanks!

Was this question helpful to you? Yes: 0 No: 0


Asked by Rheonda a year ago

Question: does the booster pull from the public cell signal or do I need to connect to a private (paid) wifi service?

Answer: Thanks for your question! Our amplifiers are to amplify public cell signals from carriers towers in the area. No need to connect to a server or anything, it's all analog and is done passively through the amplifier. Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

Was this question helpful to you? Yes: 0 No: 0


BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.

Warning.

E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards
