4G Marine Antenna (SMA-Male) | 304420

email me this page
Email me this page

Works on every network, on any carrier.

Product Description

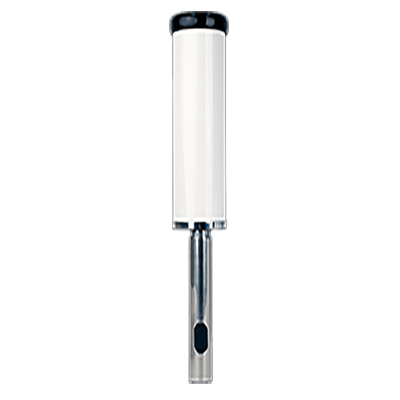

2.5 x 9.88 in. 4G Marine cellular antenna, 50 Ohm, Omni-directional, standard marine mount 1"x 14 thread, 20 ft. of RG58 with N-Male to SMA-Male connections.

For compatibility with the Drive Reach Cell Signal Booster Kit (470154), this antenna requires an SMA Female to SMB Adapter (970019).

Warning

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specs

Model Number:304420
Frequency700-800 MHz3.4 dB
824-894 MHz4.1 dB
880-960 MHz3.5 dB
1710-1880 MHz3.1 dB
1850-1990 MHz5.1 dB
2110-2170 MHz0.2 dB
Impedance50 Ohm
PolarizationVertical
ConnectorsSMA Male
Mount TypeStandard Marine Mount: 1 in x 14 thread
DimensionsCoax Cable: RG-58 – 20 feet, Height: 9.8 in
Price$ 199.99

Review Snapshot

Ratings Distribution


    Q&A

    Showing 10 out of 4 Questions

    Asked by Eric 4 months ago

    Question: I'm trying to connect a 304420 Marine antenna to a weBoost 4G system on a boat with 110v inverted power. It appears I need an adapter for the antenna cable. Can you please confirm this will work with a sma-female to f-type objector at the amplifier?

    Answer: Thank you for your question! Yes, it should work but you'll need multiple connectors to do so. Are you wanting to use a mobile antenna for a home unit? It might be better to use a building antenna and have a window entry cable instead if that's possible. Just let us know more about your situation so we can make the correct recommendation for your needs. If there's any other questions or concerns, please let us know by calling our customer support at 866-294-1660 or our online support at [email protected] Thanks again!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by ByeFelicia a year ago

    Question: Will this work with a Connect 4G-X?

    Answer: Thank you for your question! It will if you have an N-Male to SMA-Female connector but a building antenna may be better with the correct coax fittings like the 304422. Please let us know if there's anything else we can assist with by calling our customer support at 866-294-1660 or our online support at [email protected] Thank you!

    Was this question helpful to you? Yes: 0 No: 0


    Asked by JimH 3 years ago

    Question: Does the 304420 marine antenna require a ground plane? If so, how small can it be? That is, how large must it be? And, just where (vertically) must it be located in relation to the antenna?

    Answer: Thank you for your question. The 304420 will have a built in ground plane, so no additional plane is required. Usually you will mount to a standard marine mount. We offer this model: https://store.weboost.com/products/marine-antenna-mount Please reach out to us for additional questions: http://support.weboost.com/hc/en-us/requests/new

    Was this question helpful to you? Yes: 0 No: 0


    Asked by JimH 3 years ago

    Question: The information on the mounting of the 304420 antenna is rather sketchy stating it is compatible with a 1" x 14 thread. Can you explain this better? Is there a mounting device available?

    Answer: Thank you for your question. The 1x14 is a standard threading for most Marine mounts. There are a few options, but this is one we offer: https://store.weboost.com/products/marine-antenna-mount Please reach out to us here, for additional questions: http://support.weboost.com/hc/en-us/requests/new

    Was this question helpful to you? Yes: 0 No: 0


    BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.

    Warning.

    E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards
